Siemens Siemens 42505-02RG


Description

Industry Description

200A 5J RGLS 1POS LVRBPS MS OH/UG NO LUG HQ5SU STL RINGLESS HUB OPEN COVERPLATEGR

Modified Industry Description

TALON 200A 5J RGLS 1POS LVRBPS MS

AD Description

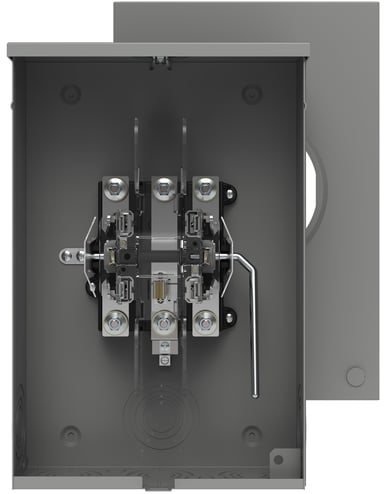

TALON® 42505-02RG Type HQU 1-Position Continuous Duty Meter Socket With Lever Bypass, Coverplate, 7/8 in Barrel Lock Knockout, 600 VAC, 200 A, 1/3 ph Phase, NEMA 3R Enclosure

Specifications

Amperage Rating
200
Application
Commercial
Country of Origin
MX
Enclosure
Steel
Frequency_Rating
False
Length1
22.0000
Mounting
SURFACEMOUNTING
Operating_Temperature
Average Ambient
Phase
1-3
Size
5.000X13.000X22.000
Special Features

  • 100% rated lever bypass with clamping action on meter
  • 3/8-24 stud terminal connector
  • Adequately dimensioned for ease in wiring and constructed of 16 ga steel with polyester powder coat finish for indoor or outdoor installation
  • Cover cannot be replaced with lever in bypass position
  • Glass fiber reinforced polyester, high strength arc and track resistant block assembly
  • Lever operated, moving lever up closes bypass and releases pressure on meter terminals
  • Plated copper current path
  • Polycarbonate track resistant transparent insulating safety shield provides protection from accidental shorts and shocks
  • Silver brazed connection
  • Terminals are 3/8 x 3/4 in cold headed cadmium plated steel stud to accommodate various screw type or compression lug for conductors to 350 kcmil
  • Tin plated copper mounting plate is compatible with aluminum or copper lug
Standard
UL
Type
HQU
Voltage Rating
600
