Thomas & Betts Thomas & Betts 1602A3R
Thomas & Betts 1602A3R
Kirby Risk #: 3165755
UPC: 78378646946, 783786469468, 00783786469468, 50783786469463
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

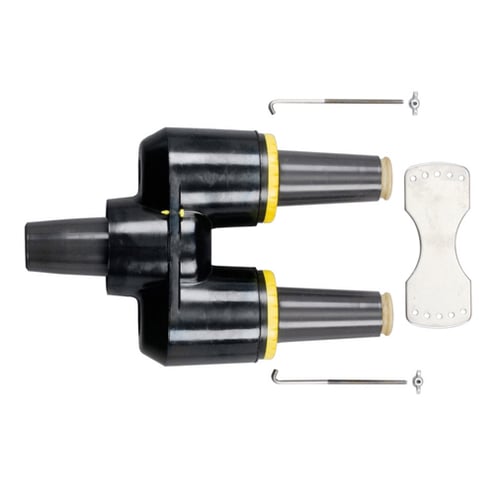

15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
Modified Industry Description
INSERT, FEED-THRU, 200A LB, 15KV
AD Description
Elastimold® 1602A3R Loadbreak Feed-Through Insert, 15 kV, 200 A, For Use With Loadbreak System, -40 to 65 deg C Temperature Rating, 4 in Center to Center Spacing, EPDM Rubber
Specifications
| Amperage Rating |
200
|
|---|---|
| Application |
200-Amp Loadbreak Connectors and Accessories provide a convenient method to connect/disconnect cable and equipment on power distribution systems.
|
| Country of Origin |
US
|
| Dimensions |
10.66 in L x 7 in W
|
| Length1 |
19.0000
|
| Material |
EPDM Rubber
|
| Size |
10.66 inch (270.8 mm) Length, 4.00 inch (101.6 mm) Center to Center, 7.00 inch (177.8 mm) wide.
|
| Special Features |
|
| Standard |
ANSI/IEEE 386
|
| Sub_Brand |
Elastimold
|
| Temperature_Rating |
-40 to +65 C
|
| Type |
200 Amp Loadbreak
|
| Voltage Rating |
15
|
