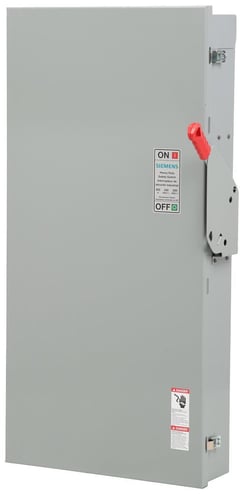

Siemens Siemens HF225NA


Description

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 2-Pole 2-Fuse and solid neutral Fused in a type 1 enclosure (indoor). Rated 240VAC (400A).

Modified Industry Description

400A 2P 240V 3W FUSED HD TYPE 1

AD Description

Siemens HF225NA Fusible Heavy Duty Safety Switch With Neutral, 240 VAC, 400 A, 50/125 hp, 2 Poles

Specifications

Actuator
SINGLETHROW
Amperage Rating
400
Application
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection
MECHANICALLUGS
Country of Origin
MX
Enclosure
NEMA1
Frequency_Rating
TRUE
Length1
6.9400
Material
Steel
Mounting
Surface
Number_Of_Poles
2
Operating_Temperature
-29
Special Features

  • Arc chutes dissipate heat and prolong switch life
  • Center punch provided for field drilling to allow ON padlocking
  • Defeatable dual cover interlock
  • Door latch securely holds door closed and allows cover padlocking
  • Drawn cover for increased rigidity and resistance to abuse
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Front removable mechanical lugs that are suitable for copper/aluminum 60 or 75 deg C conductors
  • Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
  • Handle can be padlocked in the OFF position with up to (3) padlocks with 5/16 in hasps
  • Highly visible red handle grip, designed for hook stick operation
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Informative door labeling which includes replacement parts list
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side-hinged door that opens past 180 degrees for easier wiring
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Tangential knockouts through 600 A for easy conduit lineup
  • Top key hole and bottom mounting holes provide easy 2 or 3 point mounting
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
  • Visible blade, double-break switching action
Standard
UL98
Sub_Brand
VBII
Type
HEAVYDUTYSWITCH
Voltage Rating
240
