Southwire Southwire SOOW-10/4-BLACK-500FT
Southwire SOOW-10/4-BLACK-500FT
Kirby Risk #: 3157970
UPC: 03288608137, 032886081378, 00032886081378
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
10-104 CU 4/C BLACK/WHITE/RED/GREEN SOOW BLACK 90C 600V PAPER INDENT 500 FT
Modified Industry Description
10/4 SOOW BLACK 600V 500 FT
AD Description

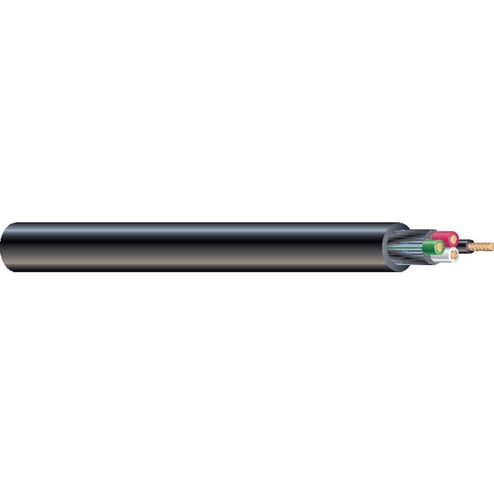

ROYAL® VIPER® 55809605 Type SOOW Portable Cord, 600 VAC, (4) 10 AWG Bare Stranded Copper Conductors, 500 ft Reel L
Vendor Description
Southwire's type SOOW flexible Cords are manufactured using bare flexible stranded class K copper conductors, with a heat, moisture and oil resistant EPDM rubber insulation. The insulated conductors are cabled with wax paper fillers. A tissue-paper separator is wrapped around the assembly to promote easy removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly to complete the construction.
Specifications
| Amperage Rating |
25
|
|---|---|
| Application |
FLEXCORD
|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Type |
Bare Stranded Copper
|
| Conductor Size |
10
|
| Construction |
CPE JACKET
|
| Core |
10
|
| Country of Origin |
USA
|
| Functions |
N/A
|
| Insulation_Material |
EPDM
|
| Jacket_Material |
Chlorinated Polyethylene
|
| Number Of Conductors |
4
|
| Number_Of_Outlets |
N/A
|
| Outside_Diameter |
0.715
|
| Package_Quantity |
500.000
|
| Plug_Type |
N/A
|
| Special Features |
|
| Standard |
UL62
|
| Sub_Brand |
Royal?®
|
| Type |
SOOW
|
| Voltage Rating |
600
|
