Lutron Lutron SCR-15-GFST-SW


Description

Industry Description

Tamper resistant, Self-testing GFCI receptacle, 15A in snow

Modified Industry Description

15A SNOW GFCI RECEPTACLE TAMPER RESISTANT 125V

AD Description

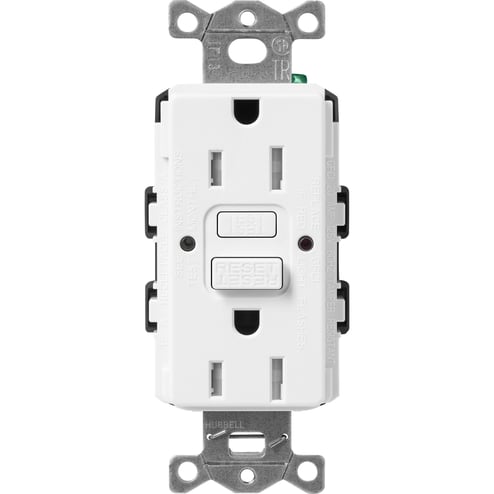

Lutron® Claro® Satin Colors® SCR-15-GFST-SW Designer Style Self-Testing Tamper-Resistant GFCI Receptacle With Claro® Wallplate, 125 VAC, 15 A, Snow

Specifications

Actuator
Touch bar
Amperage Rating
15
Application
Lighting Control
Color
Snow
Connection
Wallbox
Conductor Size
10 to 14
Country of Origin
CN
Dimensions
3.28 in H x 1.75 in W x 1.47 in D
Enclosure
Plastic
Environmental_Conditions
4.69in (119mm) x 2.94in (75mm)
Finish
Satin
Frequency_Rating
60
Insulation
Plastic
Length1
2.2500
Material
Plastic
Mounting
Wallbox
NEMA_Rating
Snow
Number_Of_Poles
UL, CSA, NOM
Operating_Temperature
0 to 40 degrees Celsius
Size
4.69 in (119 mm) X 2.94 in (75 mm)
Special Features

  • (2) traditional testing mode by manually operating the "test and reset" buttons utilizing a supervisory circuit as specified in UL 943
  • Auto-sensing mode for immediate interruption for a ground fault condition for class A protection (4 to 6 mA)
  • Clear visual indication of GFCI status - LED indicating lights: green LED (power to the device), red LED (trip condition/ground fault condition), flashing red LED (end of life)
  • Clear visual indication of GFCI status, LED indicating lights:- green LED (power to the device), red LED (trip condition/ground fault condition), flashing red LED (end of life)
  • Continuous self-test functionality, disconnects power to receptacle if critical components are damaged and GFCI protection is lost - providing "continuous self-testing" that initiates within 2.5 sec and is a continuous cycle every 30 sec or less
  • Continuous self-test functionality, disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing "continuous self-testing" that initiates within 2.5 sec and is a continuous cycle every 30 sec or less
  • Internal back wiring clamp and guide pocket - quick and dependable termination
  • Internal back wiring clamp and guide, pocket quick and dependable termination
  • Manual test, this design incorporates a full system test function, the GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, this in turn causes the mechanical system to react based on the action of the solenoid
  • Manual test, this design incorporates a full system test function, the GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, this in turn causes the mechanical system to react based on the action of the solenoid, the entire mechanical and electronic GFCI system is reviewed for functionality
  • Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device
  • Receptacle face compatible with NEMA designer and Nova T® designer opening wallplates
  • Receptacle face compatible with NEMA designer and NovaT* designer-opening wallplates
  • Reverse wire safety feature - if wired incorrectly there will be no power to the face or to downstream receptacles for added safety
  • Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety
  • Satin finish
  • The entire mechanical and electronic GFCI system is reviewed for functionality
  • Three provisions for providing protection, (1) continuous electronic sensing, testing and evaluation utilizing diagnostic software located on the printed circuit board
  • Three provisions for providing protection:- continuous electronic sensing, testing and evaluation utilizing diagnostic software located on the printed circuit board
  • Traditional testing mode by manually operating the "test and reset" buttons utilizing a supervisory circuit as specified in UL 943 section 5.15
Standard
UL, CSA, NOM, NEC, CEC, OSHA
Sub_Brand
Lutron
Temperature_Rating
-30 to 150
Type
Designer Duplex Self-Testing Tamper Resistant
Voltage Rating
125
Wattage
125V
