CONDUIT FITTINGS Conduit Fittings 8356
CONDUIT FITTINGS 8356
Kirby Risk #: 3154486
UPC: 78669202094, 786692020945, 00786692020945
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: CONDUIT FITTINGS
Description
Industry Description
2 EMT ELBOW 90DEG 24RAD Silver/Gray Color Made and Melted in the United States, Inline Galvanized OD and Epoxy modified acrylic ID, EMT Recognized as as Equipment Grounding Conductor by the NEC Threadless
Modified Industry Description

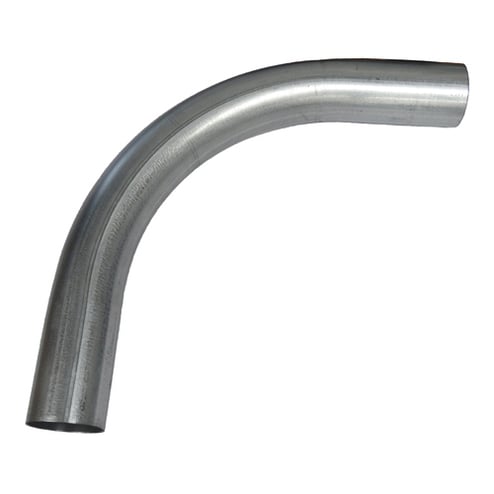

2 IN EMT ELBOW 90 DEGREE 24 IN RADIUS
AD Description
Wheatland FasTrak® Plus 8356 Special Radius Conduit Elbow, 2 in Trade, 90 deg, Steel, Epoxy Modified Acrylic/Galvanized
Specifications
| Application |
Used to change the direction of a raceway
|
|---|---|
| Brand Name |
Conduit Fittings
|
| Color |
Silver/Gray
|
| Country of Origin |
USA
|
| Finish |
Epoxy Modified Acrylic/Galvanized
|
| Inside_Diameter |
2.067
|
| Material |
Steel
|
| Outside_Diameter |
2.197
|
| Radius |
24
|
| Special Features |
|
| Standard |
UL 797, CSA C22.2 83.1, ANSI C 80.3 and Federal Specification WW-C-563
|
| Sub_Brand |
Picoma
|
| Trade_Size |
2
|
| Type |
Special Radius
|
