Southwire Southwire THHN STR 1 RED CU - 2500FT
Southwire THHN STR 1 RED CU - 2500FT
Kirby Risk #: 3154468
UPC: 03288690151, 032886901515, 00032886901515
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
1-19 SD CU SIMpull (TM) THHN-THWN-2 MTW RED 2500 FT
Modified Industry Description
1 THHN RED STRANDED COPPER WIRE, 2500 FT
AD Description

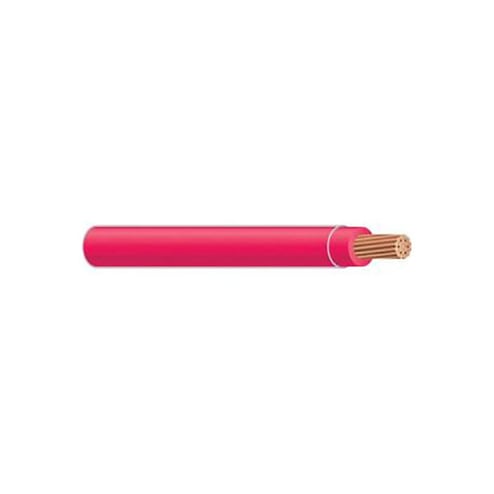

Southwire® NoLube® SIMpull® 34459805 Type THHN THWN-2 MTW Building Wire, 600 VAC, (1) 1 AWG Stranded Copper Conductor, 2500 ft Reel L, Red
Vendor Description
Southwire® SIMpull® THHN® copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic order quantity. Marked as THHN in all sizes. Also marked as THWN-2 in sizes 8 AWG and larger or marked as THWN in sizes 14, 12, and 10 AWG. Marked sunlight resistant in sizes 2 AWG and larger. Sizes 14, 12, and 10 AWG are available with SIMpull® technology only in SIMpull® BARREL cable drum or SIMpull® CoilPAK™ configurations.
Specifications
| Amperage Rating |
145
|
|---|---|
| Application |
Commerical
|
| Brand Name |
Southwire
|
| Color |
Red
|
| Conductor Material |
Copper
|
| Conductor Type |
Stranded
|
| Conductor Size |
1
|
| Country of Origin |
USA
|
| Insulation_Material |
PVC
|
| Jacket_Material |
Nylon
|
| Number Of Conductors |
1
|
| Outside_Diameter |
435
|
| Package_Quantity |
2500.000
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Type |
THHN
|
| Voltage Rating |
600
|
