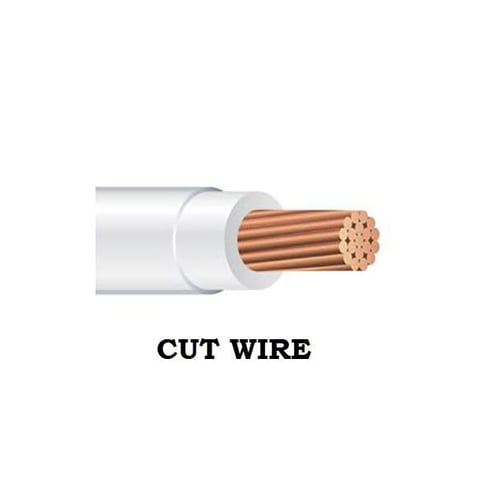

Southwire Southwire THHN STR 3 WHT CU - CUT
Southwire THHN STR 3 WHT CU - CUT
Kirby Risk #: 3154260
UPC: 03288623263, 032886232633, 00032886232633
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
3-19 SD CU SIMpull (TM) THHN-THWN-2 MTW WHITE 5000 FT
Modified Industry Description
3 THHN WHITE STRANDED COPPER, 5000 FT
AD Description
Southwire® NoLube® SIMpull® 24347706 Type THHN THWN-2 MTW Building Wire, 600 VAC, (1) 3 AWG Stranded Copper Conductor, 5000 ft Reel L, White
Vendor Description
Southwire® SIMpull® THHN® copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic order quantity. Marked as THHN in all sizes. Also marked as THWN-2 in sizes 8 AWG and larger or marked as THWN in sizes 14, 12, and 10 AWG. Marked sunlight resistant in sizes 2 AWG and larger. Sizes 14, 12, and 10 AWG are available with SIMpull® technology only in SIMpull® BARREL cable drum or SIMpull® CoilPAK™ configurations.
Specifications
| Amperage Rating |
115
|
|---|---|
| Application |
Commerical
|
| Brand Name |
Southwire
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
3
|
| Country of Origin |
USA
|
| Insulation_Material |
PVC
|
| Jacket_Material |
Nylon
|
| Number Of Conductors |
1
|
| Outside_Diameter |
346
|
| Package_Quantity |
5000
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Type |
THHN
|
| Voltage Rating |
600
|
