RAB Lighting RAB Lighting VANLED20W


Description

Industry Description

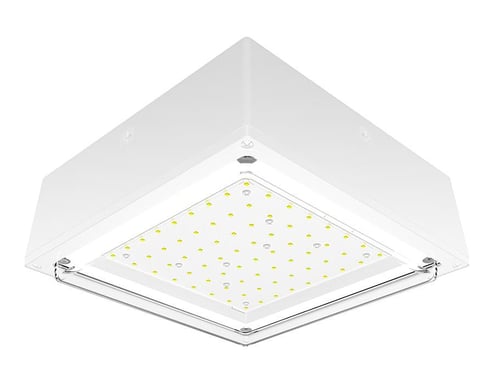

VANDALPROOF CANOPY 20W COOL LED 120-277V with DROP LENS WHITE

Modified Industry Description

20W 5000K WHT CANOPY MNT

AD Description

RAB VANLED20W Vandalproof Canopy Lighting, LED Lamp, 22 W Fixture, 120/208/240/277 VAC, White Housing

Specifications

Amperage Rating
0.3 A, 0.2 A, 0.17 A, 0.15 A
Application
Outdoor
Average_Life
100000
Ballast_Type
Class 2 Constant Current
Brand Name
RAB Lighting
Color_Temperature
5000
Country of Origin
US
Fixture_Wattage
22
Housing_Finish
White
Housing_Material
Die Cast Aluminum
Lamp_Type
LED
Lamp_Wattage
20
Lens_Type
Drop
Lumens
2352
Mounting
Ceiling
Reflector_Type
Semi Specular, Metalized Polycarbonate
Special Features

  • 0.3 A at 120 VAC, 2 A at 208 VAC, 0.17 A at 240 VAC, 0.15 A at 277 VAC
  • Ceiling mount to recessed junction with knockouts template or directly to ceiling surface, utilizing side conduit entry points
  • Clean, contemporary, low profile design
  • Die cast aluminum housing and lens frame with (4) 1/2 in NPS side conduit entries and weatherproof rear wire plug and access plate
  • Durable polycarbonate lens is vandal and UV resistant
  • Fits the footprint of older canopy lights
  • High temperature silicone gaskets
  • IP66 rated, keeps dust, bugs and water out
  • Keeps dust, bugs and water out
  • Low profile design covers traditional canopy footprints
  • Minimum starting temperature is -40 deg F/-40 deg C
  • No photocell
  • Our environmentally friendly polyester powder coatings are formulated for high durability and long-lasting color and contains no VOC or toxic heavy metals
  • Photo and motion sensor options available
  • Replace surface or recess mounted fixtures
  • Suitable for use in 104 deg F ambient temperature
  • Ultra high efficiency
  • Vandal-resistant and UV-resistant lens
  • Vandal-resistant polycarbonate textured opaque for low glare drop lens
  • With flat lens
  • Without sensor
Sub_Brand
RAB Lighting
Type
Vandalproof
Voltage Rating
120/208/240/277
Wattage
20
