O-Z/Gedney O-Z/Gedney 0ZGC200A
O-Z/Gedney 0ZGC200A
Kirby Risk #: 3151741
UPC: 78312607425, 783126074253, 00783126074253
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

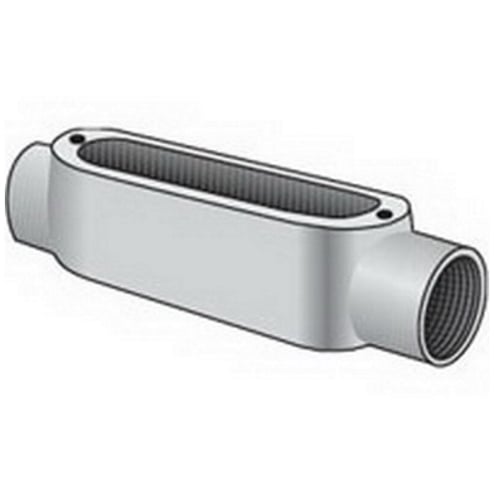

OZ-Gedney Type C Conduit Body, 2 IN Hub, Length: 10-5/8 IN, 3-1/8 IN Width, 3-3/8 IN Height, Die-Cast Copper-Free Aluminum, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (2/0 AWG) Conductors, 75 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
Modified Industry Description
2 IN COND BODY ALUM C
Specifications
| Application |
For Rigid Conduit And IMC
|
|---|---|
| Connection |
Tapered FNPT
|
| Country of Origin |
IN
|
| Dimensions |
10-5/8 in L x 3-1/8 in W x 3-3/8 in H
|
| Enclosure |
NEMA FB-1/FB-2.10
|
| Finish |
Epoxy Powder Coated/Aluminum Enamel
|
| Length1 |
12.3000
|
| Material |
Die Cast Copper Free Aluminum
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10
|
| Type |
Type C
|
