TPI TPI F3FUH30CA1


Description

Industry Description

Horizontal Fan Forced Wall Heater, 3 PH, 30 KW, 208 V, Panel Mounting, Dimensions- 24 Width X 17 Height X 17 Depth IN, Steel Housing Material, BTU Rating- 102390, 83.4 AMP, Air Flow- 1350 CFM

Modified Industry Description

30KW 208V 3P UH SERIES UNIT HTR.

AD Description

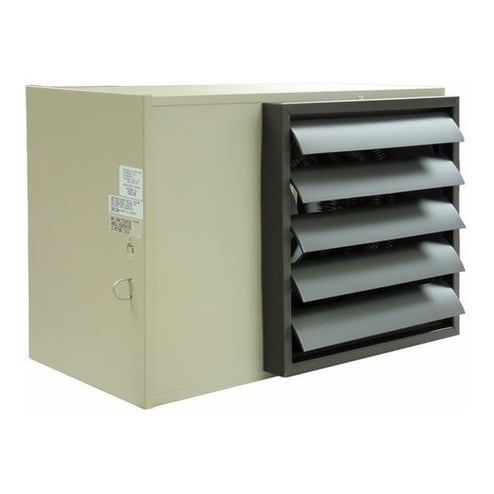

TPI F3FUH30CA1 UH Series 3-Phase Fan Forced Horizontal Standard Unit Heater, 102390 Btu/hr Capacity, 208 VAC, 30 kW Power Rating

Specifications

Application
Indoor-Commercial/Industrial
Country of Origin
US
Dimensions
24 X 17 X 17 Dept
Length1
35.0000
Mounting
Panel
Phase
3
Special Features

  • 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application
  • All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur
  • Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard
  • Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance
  • Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow
  • Totally enclosed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise
Standard
ETLus Listed
Sub_Brand
TPI
Type
Horizontal Fan Forced
Voltage Rating
208
Wattage
30
