Southwire Southwire MHF 2/0-2/0-1-4 Al 500R

Name: Southwire MHF 2/0-2/0-1-4 Al 500R
Brand: Southwire
SKU: 3146460
Price: 6640.02 USD
Availability: InStock

Southwire MHF 2/0-2/0-1-4 Al 500R

Kirby Risk #: 3146460

UPC: 03288657905, 032886579059, 00032886579059

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

2/0-2/0-1-4 3E AL USE-2 RHH RHW-2 MOBILE HOME FEEDER 500 FT

AD Description

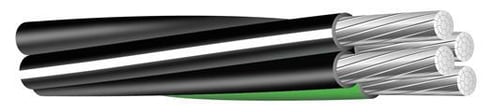

Alumaflex™ 30162201 Underground Service Entrance Mobile Home Feeder Cable, 600 VAC, (3) 2/0-2/0-1-4 AWG Stranded Aluminum Conductor, 500 ft L

Amperage Rating	150
Conductor Type	Stranded Aluminum
Conductor Size	2/0-2/0-1-4 AWG
Country of Origin	USA
Length1	500
Number Of Conductors	3
Outside_Diameter	1301
Special Features	Cross-linked polyethylene (XLP) insulation Insulation is sunlight resistant Southwire mobile home feeder consists of four quadruplexed type RHH or RHW-2 or USE-2 Alumaflex™ AA-8000 series aluminum alloy compacted conductors The cable contains a triple extruded white striped neutral conductor and a solid green grounding conductor to eliminate the need for field marking per the NEC
Sub_Brand	Alumaflex
Temperature_Rating	90
Type	Underground Service Entrance
Voltage Rating	600
