Siemens Siemens P1E30MC250AT
Siemens P1E30MC250AT
Kirby Risk #: 3143215
UPC: 88762166352, 887621663520, 00887621663520
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Siemens Low Voltage RP1 Unassembled Lighting Panel. Dimensions (H x W x D) IN 38.0 x 20.0 x 5.75. 3-Phase 4-Wire allows 30 circuits user selects Main Device (Lug/Breaker). Rated 480Y/277V (250A). Special features tin-plated aluminum main bus, subfeed space included
Modified Industry Description
P1 REV. UPB 250A 480/277V 30CIR AL
AD Description

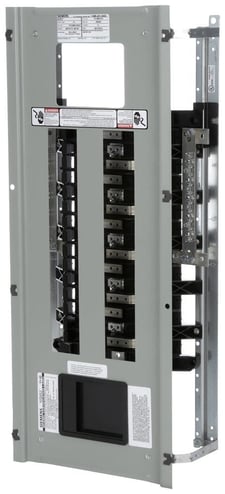

Siemens P1E30MC250AT Type P1 3-Phase Panelboard Interior, 480/277 VAC, 250 A
Vendor Description
Type P1 unassembled panelboards are completely convertible from main lug to main breaker and vice versa. Additionally feed thru lugs or a subfeed circuit breaker up to 400 A can be added without increasing the box height.
Specifications
| Amperage Rating |
250
|
|---|---|
| Brand Name |
Siemens
|
| Breaker_Type |
BL/BQD/xGB
|
| Cable_Size |
N/A
|
| Connection |
N/A
|
| Cooling |
N/A
|
| Country of Origin |
US
|
| Enclosure |
16 Gauge Steel or UL Equivalent Construction
|
| Insulation |
None
|
| Material |
Aluminum BUS
|
| Mounting |
N/A
|
| Number_Of_Feeders |
30
|
| Operating_Temperature |
N/A
|
| Phase |
3
|
| Rating_Of_Feeders |
N/A
|
| Short_Circuit_Rating |
N/A
|
| Size |
N/A
|
| Special Features |
|
| Standard |
PB1/UL67
|
| Sub_Brand |
N/A
|
| Type |
UPBinteriors
|
| Voltage Rating |
277/480
|
| Wiring_Configuration |
4-Wire
|
