Lithonia Lighting Lithonia Lighting TZL1N L96 6000LM FST MVOLT 50K 80CRI WH


Description

Industry Description

Tandem ZL series LED, 96'' long, 6,000 nominal lumens, Frosted, diffuse, 120V-277V, 5000K, 80 color rendering index, White finish, SKU - 254FA5

Modified Industry Description

120/277V 60W 8FT LED Striplight 6000 Lumens 5000K

AD Description

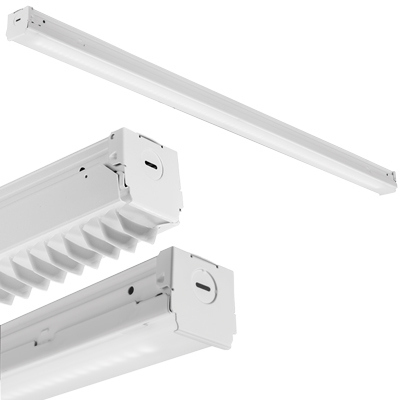

Lithonia Lighting® TZL1N L96 6000LM FST MVOLT 50K 80CRI WH Tandem Strip Light, LED Lamp, 60 W Fixture, 120 to 277 VAC, White Housing

Vendor Description

The ZL1N LED strip light delivers the look of a traditional low profile fluorescent strip, but offers features and efficacy beyond conventional technology. Highly efficacious, the ZL1N maximizes savings yet does so without compromising light levels. The ZL1N is available in lengths of 2, 4 and 8 ft, allowing you to match existing fluorescent fixtures or keep the same aesthetic throughout your site. The ZL series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures.

Specifications

Application
Closet/Storage Room, Corridor, Light Commercial, Manufacturing, Retail
Average_Life
60,000
Brand Name
Lithonia Lighting
Color
White
Color_Rendering_Index_CRI
80
Color_Temperature
5000
Country of Origin
MX
DIMMABLE
True
Environmental_Conditions
Indoor
Finish
Gloss
Fixture_Type
Strip Light
Lamp_Included
True
Lamp_Type
LED - Static
Lens_Material
Acrylic
Lumens
6k
Material
Steel
Mounting
Pendant, Semi-flush, Surface, Suspended
Power_Source
Hardwired
Special Features

  • Built on the compact, low profile Z-strip channel, this LED strip offers long life, several color temperatures, lumens outputs and length
  • Compact design channel and cover are formed from code gauge cold rolled steel
  • Factory installed nLight® Power pack option for synchronous dimming and networking
  • Five stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance
  • Luma-Tilt angle bracket to aim ZL1N at 35, 45, 55 and 65 deg
  • Luminaire should be installed in applications where ambient temperatures do not exceed 86 deg F
  • Three point aligner locks in place for easy continuous row mounting for aisle applications
  • Toolless channel cover for easy installation
  • Utilizes high output LED's integrated on a two layer circuit board, ensuring cool running operation
Standard
CSA, UL Damp Location
Sub_Brand
Lithonia Lighting
Type
Strip Light
Voltage Rating
MVOLT
Wattage
59
