Panduit Pan-Net Panduit Pan-Net ISX6004AYL-LED
Panduit Pan-Net ISX6004AYL-LED
Kirby Risk #: 3138759
UPC: 07498361562, 074983615629, 00074983615629
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

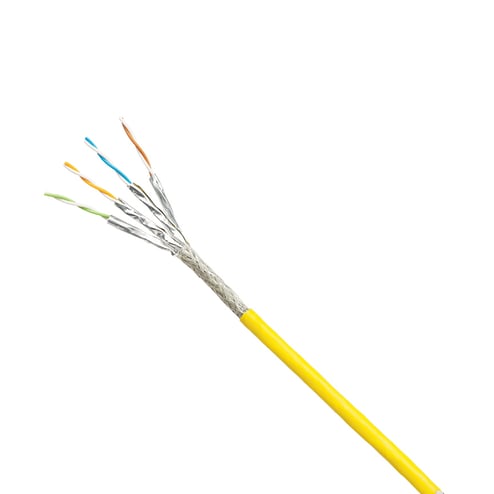

Category 6, industrial, 4-Pair, S/FTP copper cable. Conductors are 24/7 AWG construction with PE insulation. Conductors are twisted in pairs, each of the 4 pairs are surrounded by a metallic foil with a braided shield and protected by a flame-retardant and
AD Description
Panduit® IndustrialNet™ ISX6004AYL-LED 4-Pair S/FTP Copper Cable, Cat 6 24 AWG Stranded Copper Conductor, 1640 ft L Cord
Specifications
| Application |
Industrial
|
|---|---|
| Color |
Yellow
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
24
|
| Construction |
S/FTP
|
| Country of Origin |
DEU
|
| Length1 |
19.7000
|
| Number Of Conductors |
4
|
| Outside_Diameter |
0.31
|
| Series |
ISX6004A
|
| Special Features |
|
| Standard |
Exceeds the requirements IEC 61156-6 and ANSI/TIA-568-C.2 Category 6; Standard compliances: Flexure IEC 61935-2 Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360° Ozone
|
| Sub_Brand |
IndustrialNet?„?
|
| Temperature_Rating |
-40 to 167
|
| Type |
4-Pair S/FTP
|
| Voltage Rating |
80
|
