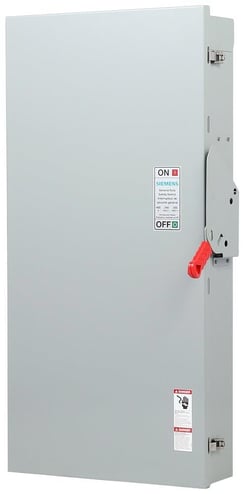

Siemens Siemens GF225NRA


Description

Industry Description

Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole 2-Fuse and solid neutral Fused in a type 3R enclosure (outdoor). Rated 240VAC (400A).Horse power (Std, Time delay) fused 1-PH 2-W (15, - ), 3-PH 3-W (50, 125), 250VDC (50). Special features service entrance labeled suitable for 3-PH motor loads.

Modified Industry Description

400A 240V - NON FUSED NEMA 3R SAFETY SWITCH, 2 POLE, GENERAL DUTY

AD Description

Siemens GF225NRA Fused Low Voltage General Duty Safety Switch With Neutral, 240 VAC, 250 VDC, 400 A, 15 hp, 50 hp, DPST Contact, 2 Poles

Specifications

Actuator
SINGLETHROW
Amperage Rating
400
Brand Name
Siemens
Connection
MECHANICALLUGS
Country of Origin
MX
Enclosure
NEMA3R
Frequency_Rating
60
Material
304 Stainless Steel
Mounting
Surface
Number_Of_Poles
2
Number_Of_Wires
3
Operating_Cycles
6000
Operating_Temperature
-29
Phase
1/3
Special Features

  • A unique enclosure design that adds rigidity and strength, Its rolled edge prevents cuts and scrapes to conductors and to installers hands
  • Cover interlock
  • Generous wiring gutters that meet or exceed NEC wire bending space requirements
  • Handle and cover padlocking provisions
  • Highly visible red handle grip
  • Informative door labeling which includes replacement parts list
  • Positive 2 or 3-point mounting
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side hinged door that opens 180 deg for easier wiring
  • Tangential knockouts through 600 A for easy conduit lineup
  • Visible blade, double break switching action
  • Without insulation
Standard
UL98
Sub_Brand
VBII
Type
Fused Low Voltage
Voltage Rating
240 VAC/250 VDC
