Siemens Siemens LCE00C200024A


Description

Industry Description

Electrically held lighting contactor, (convertible to mech. held), Amp rating 30A (tungsten 20A), 2 N.C. / 0 N.O. poles, 24V 60Hz / 20V 50Hz coil, Non-combination type, Enclosure NEMA type (open), No enclosure

Modified Industry Description

CONTACTOR,LTG,EH,OPEN,30A,2NC,0NO,0

AD Description

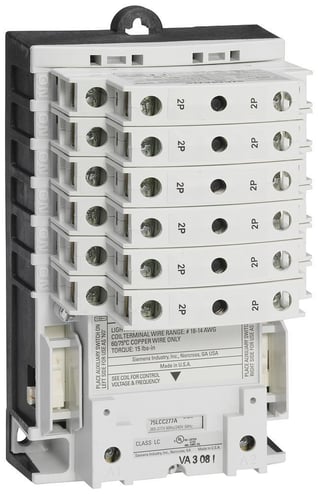

Siemens LCE00C200024A Class LC Electrically Held Lighting Contactor, 20/24 VAC Coil, 30 A, 2NC-0NO Contact, 2 Poles

Vendor Description

Siemens expands upon its lighting contactor offering with the new Class LC lighting contactor. These lighting contactors deliver unprecedented versatility in application, simplicity in configuration and performance in operation. Ingenious design, rugged construction and a host of truly useful features make them uniquely appealing.

Specifications

Country of Origin
US
Special Features

  • 24 VAC at 60 Hz, 20 VAC at 50 Hz coil voltage
  • A simple kit easily converts electrically held units to mechanically held and includes a 2 or 3-wire control module
  • Can be ordered as either electrically or mechanically held and can also be converted from electrically to mechanically held in the field with a simple conversion kit
  • Contact position indication when button protrudes, contact is closed
  • Contacts are rated up to 30 A at 600 VAC
  • Convenient side access field power wiring
  • Finger and back of hand safe terminals
  • Full line of factory and field modifications
  • Furthermore, they may be converted from NO to NC (or vice versa) simply by repositioning
  • Modular design enables you to stock the building block components to assemble all configurations of both the electrically and mechanically held contactors thus dramatically reducing inventory
  • Plug-in auxiliary contacts are NO when installed on the left side of the contactor, NC on the right
  • Power poles can easily be added at any time based on changing needs
  • Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
  • Standard base enables contactor to be field expandable for flexibility and future needs
  • Used in all applications where either electrically or mechanically held contactors are specifically suited and also ideal for maximum flexibility and future expansion
