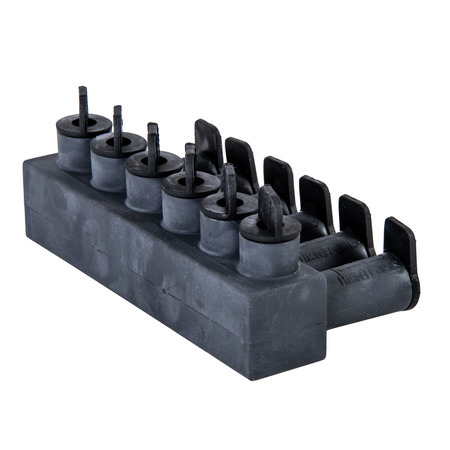

NSI NSi ISPB2/O-6


Description

Industry Description

2/0-14 AWG Polaris EDGE EPDM Rubber Pedestal Connector -6 port. Polaris Edge are manufactured from high strength 6061-T6 aluminum alloy, providing premium electrical and mechanical performance. Radial tipped set screws reduce conductor strand damage, and the range taking design allows for many sizes and types of conductors- all in one connector. Encapsulated in EPDM rubber with a nominal thickness of 125 mils. Abrasion and chemical resistant. UV resistant. Will not support combustion. UL Listed 486D Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. For use with copper and/or aluminum cables.

Modified Industry Description

Submersible Connector, 6 Port, 2/0 AWG - 14 AWG

AD Description

NSI POLARIS™ ISPB2/0-6 ISPB Series Dual Rated Submersible Pedestal Connector, 14 to 2/0 AWG Aluminum/Copper Conductor, EPDM Rubber

Specifications

Application
Wire Termination
Color
Black
Conductor Size
2/0-14 AWG
Country of Origin
USA
Environmental_Conditions
90 C
Finish
Rubber
Length1
5.3700
Material
EPDM Rubber
Number Of Conductors
6
Number_Of_Poles
1
Size
L=5.37 - W=2.65 - H=2.10
Special Features

  • Encapsulated in rubber with a nominal thickness of 125 mils and high dielectric strength
  • Manufactured from high strength 6061-T6 aluminum alloy, providing premium electrical and mechanical performance
  • Radial tipped setscrews reduce conductor strand damage and the range taking design allows for many sizes and types of conductors all in one connector
  • Submersible to 6 ft damp/wet location, direct bury
  • Will not support combustion
Standard
ANSI C119.4, C119.1, UL486D
Sub_Brand
Polaris EDGE
Temperature_Rating
90 C
Type
Submersible Pedestal Connectors
Voltage Rating
600 V
