Cooper Lighting Cooper Lighting RL560WH6830


Description

Modified Industry Description

HALO RL56 WH 80CRI 3000K, C&I,

AD Description

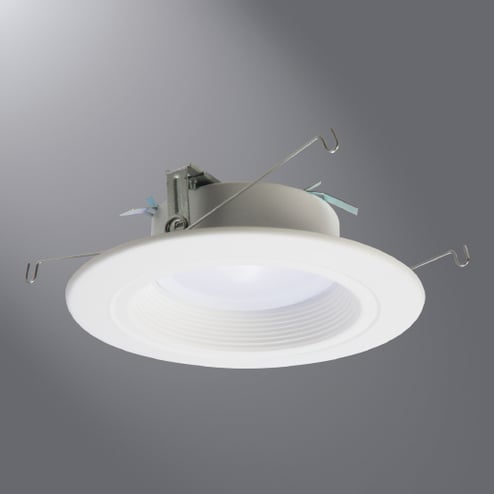

Halo RL560WH6830 600 RL56 Adjustable Gimbal Dimmable Retrofit LED Module, LED Lamp, 7.3 W Fixture, 5, 6 in Ceiling Opening, 120 VAC, Aluminum Housing

Vendor Description

The Halo® RL56 series is a complete LED baffle-trim module for 5 and 6 in aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation in Halo, All-Pro® and other compatible 5 and 6 in housings. The integral LED driver offers 120 V dimming capability. The RL56 lens provides uniform illumination and wet location listing. Precision designed to make any housing Air-Tite™ for added HVAC savings and code compliance. Compliant with NFPA® 70, NEC section 410.16 (A) (3) and 410.16 (C)(5).

Specifications

Amperage Rating
0.15
Application
Lighting
Color
White
Country of Origin
MUL
Dimensions
2.938 in L x 7.5 in W x 8.25 in H
Lamp_Type
LED
Lumens
671
Mounting
Recessed
Mounting_Type
Recessed
Series
600 RL56
Special Features

  • A tight chromaticity specification ensures LED color uniformity, sustainable color rendering index (CRI) and correlated color temperature (CCT) over the useful life of the LED
  • Damp location and wet location shower listed
  • Dimmable to 5% with select dimmers
  • Dual mount torsion spring and Push-N-Twist clip models
  • Halo matte white trim finish
  • Impact resistant polycarbonate, high lumen transmission
  • Torsion springs pre-installed
  • Use with Halo 5 and 6 in LED housings new construction and remodel
Standard
Energy Star Qualfied
Sub_Brand
Cooper Halo
Type
Adjustable Gimbal Dimmable
Voltage Rating
120
Wattage
9.6W
