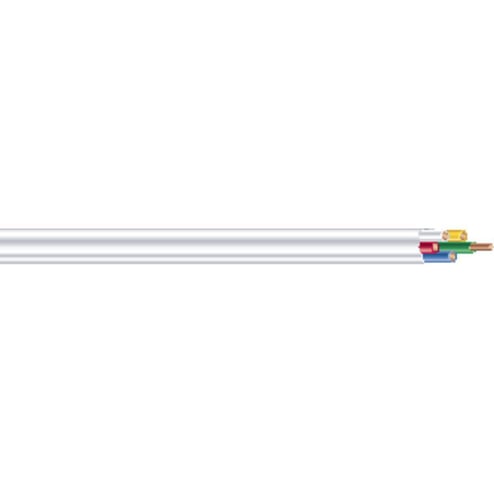

Southwire SOUTHWIRE THERM 18/5-WHT-250FT


Description

Industry Description

18 SOL CU 5/C T-STAT WIRE UL CL2 WHITE 250 FT

Modified Industry Description

18/5 WHITE THERMOSTAT WIRE

AD Description

Southwire® 56945402 Class 2 Thermostat Wire, 150 VAC, (5) 18 AWG Solid Copper Conductor, 250 ft L

Vendor Description

At Southwire®, we continue to create quality, long lasting products for the HVAC industry. Our latest innovation, SIMpull® Tstat™ wire, combines traditional thermostat wire with patented SIM Technology® for faster installs and cleaner handling. Designed to be easier to pull, easier to strip and more resistant to abrasion, it makes tough retrofit jobs more of a breeze. And, the SIMpull® Tstat™ advantage is available at the same price as our traditional thermostat wire.

Specifications

Brand Name
Southwire
Color
White
Conductor Material
Copper
Conductor Type
Solid Copper
Conductor Size
18
Country of Origin
UKN
Insulation_Material
PVC
Jacket_Material
PVC
Number Of Conductors
5
Outside_Diameter
1615
Package_Quantity
1000
Special Features

  • 15 mil insulation thickness
  • 25 Pf/ft capacitance between conductors at 1 kHz
  • 6.32 Ohm/1000 ft DC resistance per conductor at 20 deg C (nom)
  • Conductors are covered with a brown PVC jacket using SIM (SlikQwik® Infused Membrane) for easier pulling resulting in easier installation, ripcord
  • Red, white, green, blue, yellow conductor colors
  • Solid copper conductors with 6 mil of PVC insulation
  • Vertical tray flame test (FT-1)
Sub_Brand
Southwire
Type
Class 2
Voltage Rating
150
