Southwire Southwire 14-3 CU STR THHN BLK/WHT/RED/GRN AL


Description

Industry Description

14-3 STR CU THHN BLACK/WHITE/RED/GREEN AIA MC 600V 100 FT

Modified Industry Description

14-3 CU STR THHN BLK/WHT/RED/GRN AL

AD Description

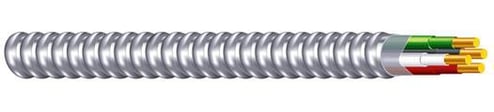

Armorlite® 55018023 Type MC THNN Interlocked Armored Cable, 600 VAC, (3) 14 AWG Stranded Copper Conductors, 100 ft Coil L

Vendor Description

Southwire Armorlite® type MC cable is constructed with soft drawn copper, type THHN/THWN conductors rated 90 deg C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.

Specifications

Amperage Rating
15
Conductor Type
Stranded Copper
Conductor Size
14 AWG
Country of Origin
USA
Length1
100
Number Of Conductors
3
Outside_Diameter
0.481
Special Features

  • Anti-short bushings are not required for use with MC cable
  • Cable reverse wound on reel for ease of pulling and installation, when pulling from coils, pull from inside to ensure ease of installation
  • Lightweight aluminum armor as much as 45% lighter than steel MC cable
  • Reduces installation costs up to 50% over pipe and wire
Sub_Brand
Southwire
Temperature_Rating
90
Type
Type MC THNN
Voltage Rating
600
