Hubbell Hubbell HBLDS3SSR
Hubbell HBLDS3SSR
Kirby Risk #: 3113023
UPC: 78358554154, 783585541549, 783585550770, 00783585541549
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Disconnect Switches, Sloped Enclosure,30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel
Modified Industry Description
30A 600V - 3 POLE UNFUSED DISCONNECT SWITCH, STAINLESS STEEL
AD Description

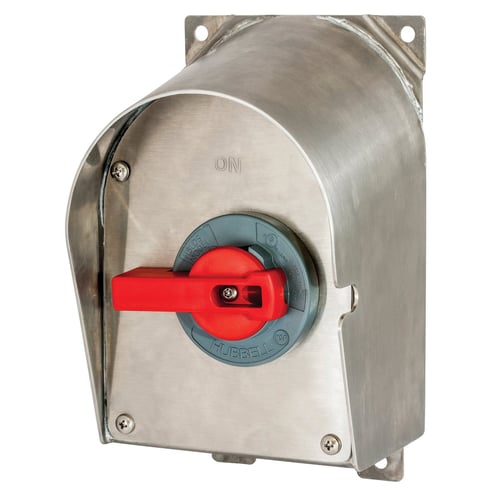

Wiring Device-Kellems Circuit-Lock® HBLDS3SSR Sloped Top Standard Unfused Enclosed Disconnect Switch, 600 VAC, 30 A, 15 hp, 3 Poles
Vendor Description
Hubbell® Stainless Steel Disconnect Switch is the latest addition to the Circuit-Lock® family of switched enclosures. The product has been certified by NSF International for hygiene applications in food and beverage processing. The enclosures are designed to withstand harsh environments with exposure to water, chemicals, oils and frequent washdowns. The enclosures feature 304 Series Stainless Steel and are UL Listed Type 4X and 12. The DIN rail mounted switch accommodates up to two auxiliary contacts for control circuit applications. The high visibility red handle can be locked in the OFF position for compliance with OSHA lockout/ tagout requirements.
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Motor Starting w/o Overload Protection
|
| Brand Name |
Hubbell
|
| Connection |
Pressure Screw Terminals
|
| Country of Origin |
PL
|
| Enclosure |
NEMA 4X
|
| Environmental_Conditions |
Indoor and Outdoor
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3
|
| Operating_Cycles |
10k
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL508
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Enclosed Quick Disconnect Switch
|
| Voltage Rating |
600
|
| Width_2 |
9.9000
|
