Lithonia Lighting Lithonia Lighting 2GT8 3 17 A12 MVOLT 1/3 GEB10IS(NO LAMPS


Description

Industry Description

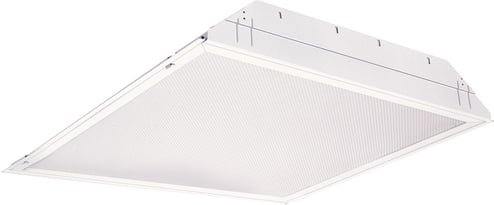

General Purpose T8 Lensed Troffer 2' wide, Three lamps, 17W T8 (24''), #12 pattern acrylic, MVOLT, 120-277V, One 3-lamp ballast, SKU - 198KJ7

Modified Industry Description

2 X 4FT 17W T8 LENSED TROFFER

Specifications

Application
Cafeteria, Classroom, Conference Room, Corridor, Light Commercial, Open Office
Ballast_Type
Electronic/Instant Start
Brand Name
Lithonia Lighting
Color
White
Country of Origin
MX
Dimensions
24 in L x 24 in W x 3-1/4 in D
Housing_Material
Steel
Lamp_Type
T8 Fluorescent
Lamp_Wattage
17
Lens_Type
NO 12 Pattern Acrylic Glass
Material
Steel
Mounting
Recessed
Number_Of_Lamps
3
Socket_Type
Bi-Pin: Single
Special Features

  • 24 in No 12 pattern acrylic
  • Acrylic shielding material 100% UV-stabilized, no asbestos is used in this product
  • Bi-pin single socket
  • Corners screwed together for rigidity, easy lens replacement
  • Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance
  • Integral T-bar safety clips hold T-bar securely
  • Lighter weight fixture allows for safe, easy installation
  • Luminaire is suitable for damp locations, AWM, TFN or THHN wire used throughout, rated for required temperature ranges
  • No 12 pattern acrylic diffuser
  • Painted parts finished with high gloss, baked white enamel
  • Smooth hemmed sides and smooth, inward formed end flanges for safe handling, lighter weight fixture allows for safe, easy installation
  • Standard door is flush steel with mitered appearance completely frames shielding
  • Standard steel door frame has superior structural integrity with premium extruded appearance and precision flush mitered corners, steel door allows easy lens replacement without frame disassembly
  • Superior mechanical light seal requires no foam gasketing, integral T-bar clips secure fixture to T-bar system, housing formed from cold rolled steel
Standard
UL
Sub_Brand
Lithonia Lighting
Type
Troffer
Voltage Rating
120 to 277
