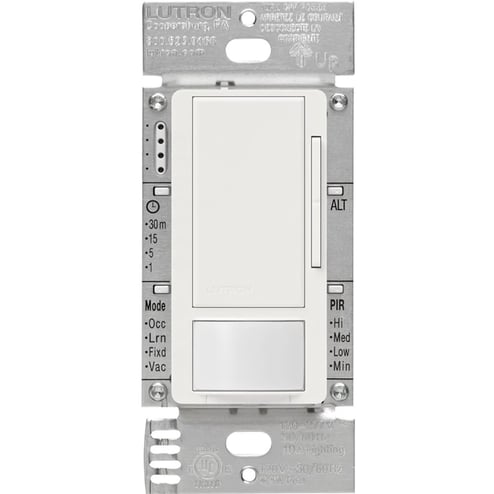

Lutron Lutron MS-Z101-V-WH


Description

Industry Description

Maestro 0-10V dimmer vacancy sensor, passive infrared, 8A fluorescent ballast or LED driver, 120-277V, in white

Modified Industry Description

MAESTRO WHITE 0-10V DIMMER VACANCY SENSOR, 120/277V

AD Description

Maestro® MS-Z101-V-WH 3-Way Occupancy Vacancy Sensor With 0 to 10 VAC Dimmer, 120 to 277 VAC, Passive Infrared Sensor, 900 sq-ft Coverage, 180 deg, Wall/Box Mount

Vendor Description

Lutron® Maestro™ 0 to 10 V dimmer sensors are lighting controls with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. The Maestro™ 0-10 V dimmer sensor combines a Maestro™ 0 to 10 V dimmer with an occupancy orvacancy Sensor.

Specifications

Amperage Rating
8
Application
Lighting Control
Body
Plastic
Brand Name
Lutron
Color
White
Country of Origin
CN
Coverage1
900
Enclosure
Plastic
Environmental_Conditions
0 to 90% humidity, non-condensing. Indoor use only.
Finish
Gloss
Load
8 A/0-10VDC
Mounting
Wallbox
Mounting_Type
Wall/Box
Operating_Temperature
32 to 104 F (0 to 40 C)
Sensitivity
High/low
Sensor
True
Special Features

  • 0 to 10 VAC dimmer and vacancy PIR sensor, single pole/multi-location, single pole/multi-location, 8 A capacity
  • 1/5/15/30 min (Adjustable) time delay
  • 180 deg sensor field of view
  • 400 sq-ft minor motion coverage
  • 8 A(electronic fluorescent ballast/LED driver), 1/6 hp at 4.4 A(fan)
  • Adaptive switching algorithm for extended relay life
  • Adjustable settings for auto-on light level (occupied level) 100%, 50%, last light level or locked preset light level
  • Adjustable timeout (1, 5, 15 or 30 min)
  • All models have single pole and 3-way capability
  • Combined benefits of 0 to 10 VAC dimming and PIR occupancy/vacancy sensing to provide optimized dimming performance
  • Controls 0 to 10 VAC electronic fluorescent ballasts, 0 to 10 V electronic LED drivers loads
  • Controls 0 to 10 VDC electronic fluorescent ballasts or LED driver load types
  • High end trim and low end trim to adjust maximum and minimum light levels
  • High, medium, low, minimum adjustable sensitivity level
  • Miswire and incompatible load alert
  • No neutral required, comes in occupancy/vacancy mode or vacancy only
  • Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
  • Off warning fades lights to off over a period of 10 s
  • Passive infrared motion detection with exclusive Lutron® XCT™ technology for fine motion detection
  • Selectable dimming curve linear or square law
  • Smart ambient light detection (ALD)
  • Superior sensing with Lutron®'s XCT sensing technology
  • Up to 30 x 30 ft [900 sq-ft] major motion coverage and 20 x 20 ft [400 sq-ft] minor motion coverage
  • Works with a single standard mechanical 3-way switch or up to 9 companion switches (MA-AS or MSC-AS)
Standard
UL, CUL, Title 20/24 certified lighting control device
Sub_Brand
Lutron
Supply_Voltage
120/277VAC
Temperature_Rating
32 to 104
Type
3-Way
Voltage Rating
120 to 277
