Siemens Siemens HGB3B015B
Siemens HGB3B015B
Kirby Risk #: 3110749
UPC: 88762121976, 887621219765, 00887621219765
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB FRAME WITH HIGH BREAKING CA PACITY. 15A 3-POLE (14KAICAT 600Y/347V) (35KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
Modified Industry Description
BREAKER HGB 3P 15A 480V 35KA LD LUG
AD Description

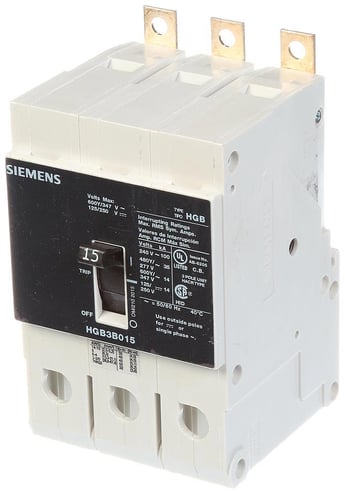

Siemens HGB3B015B Type HGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 15 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
15
|
|---|---|
| Brand Name |
Siemens
|
| Connection |
LOW TAB PANELBOARD MOUNT
|
| Country of Origin |
MX
|
| Frame |
HGB/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
35
|
| Material |
MOLDED CASE CIRCUIT BREAKER
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40DEGC
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
Siemens
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
480
|
| Width_2 |
3.0000
|
