Southwire Southwire XHHW-STR-14-GRA-CU-500FT


Description

Industry Description

14-7 CU (2.080mm2) XHHW-2 OR SIS GRAY 500 FT

Modified Industry Description

14-7 (2,08MM2) CU XHHW-2 OR SIS

AD Description

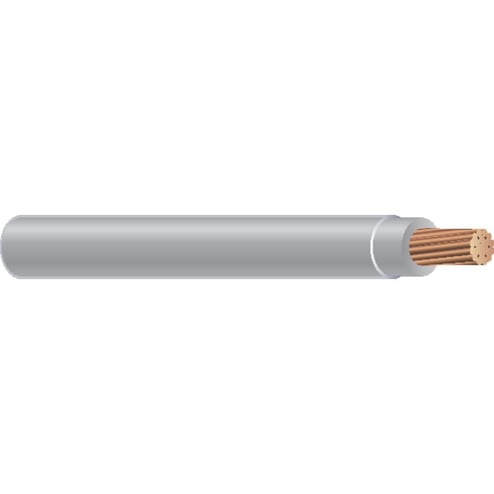

Southwire® 37100571 XHHW Building Wire, 600 VAC,) 14 AWG Annealed Stranded Copper Conductor, 500 ft L, Gray

Vendor Description

General Cable's copper building wire consists of types XHHW-2, THHN/THWN-2, and TFFN along with Canadian constructions such as RW90, RWU90 and T90 that come in a variety of colors and feature the high speed, extra low friction jacket designed to improve installation even under the most difficult conditions. Our high quality copper building wire is manufactured in the US and delivers long term, reliable performance in many types of building applications.

Specifications

Amperage Rating
15
Brand Name
Southwire
Color
Gray
Conductor Material
Copper
Conductor Type
Annealed Stranded Copper
Conductor Size
14
Country of Origin
USA
Insulation_Material
XLP
Number Of Conductors
0
Outside_Diameter
1296
Package_Quantity
500
Special Features

  • Conductors shall be UL listed type XHHW-2, suitable for operation at 600 volts or less in wet or dry locations, at temperatures not to exceed 90 deg C
  • High-heat and moisture resistant
  • Sizes 14 through 8 AWG also rated SIS
  • Southwire type XHHW-2 conductors are primarily used in conduit or other recognized raceways for services, feeders and branch circuit wiring, as specified in the national electrical code
  • XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90 deg C voltage rating for XHHW-2 conductors is 600 volts
Sub_Brand
Southwire
Voltage Rating
600
