Appleton Appleton MLEDN17P5BU
Appleton MLEDN17P5BU
Kirby Risk #: 3096834
UPC: 78138193150, 781381931502, 00781381931502
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Mercmaster Enclosed And Gasketed Luminaire, Lamp Type: 74 WTT 6076 LM 70 CRI 60000 HR 5650 DEG K LED, Lamp Wattage: 74 WTT, Voltage Rating: 120 - 277 VAC, Material: Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Ballast Body, Stainl
AD Description

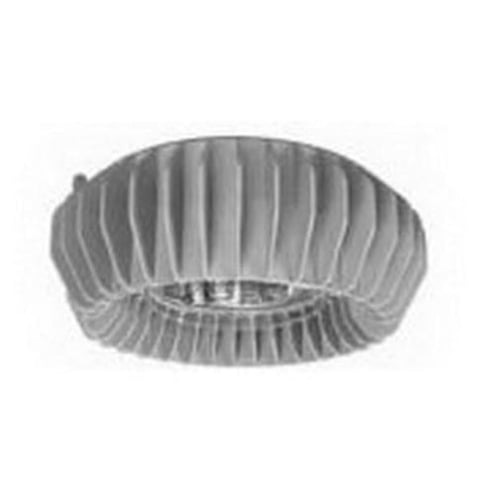

Appleton® Mercmaster™ MLEDN17P5BU Enclosed and Gasketed Fixture With Guard, (1) LED Lamp, 120 to 277 VAC, Epoxy Clad Housing
Specifications
| Amperage Rating |
630
|
|---|---|
| Application |
For Marine And Wet Locations, Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust, Corrosive Atmosphere Or High Ambient Temperatures Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem
|
| Country of Origin |
MX
|
| Lamp_Type |
74 6076 LM 70 CRI 60000 HR 5650 DEG K LED
|
| Length1 |
19.3000
|
| Material |
Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Ballast Body, Stainless Steel Hardware And Latch Assemblies
|
| Special Features |
|
| Standard |
NEC/CEC: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III; UL 1598, 1598A, 8750, 844; CSA C22.2 No.250, C22.2 No.137, 065182
|
| Sub_Brand |
Mercmaster
|
| Type |
Enclosed And Gasketed Luminaire
|
| Voltage Rating |
120 to 277
|
