Intermatic Intermatic EK4036S
Intermatic EK4036S
Kirby Risk #: 3095981
UPC: 07827514628, 078275146280, 00078275146280
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
Improved ON/OFF switching with high quality relays. Zero-crossing electronic circuitry for extended life. Employs electronic components exclusively selected to meet extended life targets. Conformal coated PCB assemblies for long term.
Modified Industry Description
ELECTRONIC PHOTO CONTROL, BUTTON STYLE
AD Description

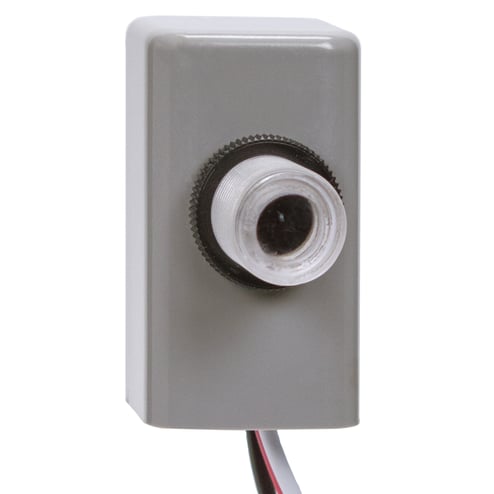

Intermatic® NightFox™ EK4036S Button Electronic Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Button Fixed Mount, Polycarbonate
Vendor Description
The EK4036S is an electronic photo control that fits in a standard outlet box, post lamp or light fixture. It is made within dimensional guidelines in ANSI C136-24 to assure fit within a large variety of fixtures and features a silicon light sensor with zero-crossing circuit to provide a long service life.
Specifications
| Application |
Dusk to Dawn cntrl.
|
|---|---|
| Ballast_Power_Rating |
1800
|
| Brand Name |
Intermatic
|
| Connection |
Color coded Leads
|
| Country of Origin |
MX
|
| Enclosure |
NEMA 410
|
| Frequency_Rating |
50/60
|
| Mounting |
Fixed position
|
| Operating_Cycles |
10k
|
| Operating_Temperature |
(-)40 - 158 DEG F
|
| Power_Consumption |
.5W at 277 VAC
|
| Sensitivity |
1.5 FC ON, 2.25 FC OFF
|
| Sensor |
Solid State Photo Sensor (Silicon IR Filtered)
|
| Size |
1.3 WIDTH X 1.24 DEPTH X 2.25 HEIGHT IN, 33.02 WIDTH X 31.49 DEPTH X 57.15 HEIGHT MM
|
| Source |
Electronic Control
|
| Special Features |
|
| Standard |
ANSI C136.24 Compliant, UL Certified to US, CSA Certified to Canadian, Title CA 20 Listed
|
| Sub_Brand |
Intermatic
|
| Supply_Voltage |
105 - 305
|
| Timing_Range |
2 - 5
|
| Tungsten_Watts |
1000
|
| Type |
Ideal for LED
|
| Voltage Rating |
105-305
|
