Southwire Southwire XHHW-STR-12-BLU-CU-500FT

Name: Southwire XHHW-STR-12-BLU-CU-500FT
Brand: Southwire
SKU: 3091671
Price: 476.55 USD
Availability: InStock

Southwire XHHW-STR-12-BLU-CU-500FT

Kirby Risk #: 3091671

UPC: 03288694369, 032886943690, 00032886943690

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

12-7 CU (3.310mm2) XHHW-2 OR SIS BLUE 500 FT

Modified Industry Description

12 XHHW STRANDED SIMPUL BLACK 500 FT COPPER

AD Description

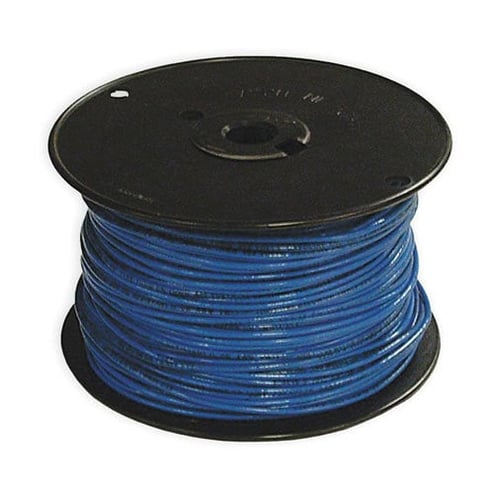

Southwire® 37104771 XHHW Building Wire, 600 VAC, (1) 12 AWG Annealed Stranded Copper Conductor, 500 ft L, Blue

Amperage Rating	20
Application	Commercial
Brand Name	Southwire
Color	Blue
Conductor Material	Copper
Conductor Type	Annealed Stranded Copper
Conductor Size	12
Country of Origin	USA
Insulation_Material	Polyethylene
Jacket_Material	Nylon
Number Of Conductors	1
Outside_Diameter	147
Package_Quantity	500
Special Features	20 A at 60 deg C, 75 deg c and 90 deg C ampacities 30 mil insulation thickness Abrasion, high-heat, moisture resistant Low smoke zero halogen insulation Suitable for operation at 600 volts or less in wet or dry locations, at temperatures not to exceed 90 deg C
Sub_Brand	Southwire
Type	XHHW
Voltage Rating	600
