Thomas & Betts Thomas & Betts RM9751
Thomas & Betts RM9751
Kirby Risk #: 3087879
UPC: 78621082165, 786210821658, 00786210821658, 30786210821659
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

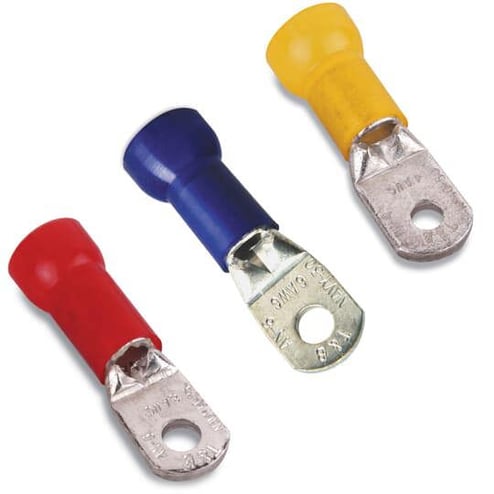

Nylon Insulated Large Ring Terminal, Length 3.00 Inches, Width 1.13 Inches, Maximum Insulation .750, Bolt Hole 1/2 Inch, Wire Range 4/0AN, Color Blue, Copper, Tin Plated
Modified Industry Description
INS NYL RING TERM, 4/0AN, 1/2, BLUE
AD Description
Sta-Kon® RM9751 RM Series Insulated Ring Terminal, 4/0 AN AWG Conductor, 3 in L, Brazed/Overlapped Seam Barrel, Copper, Blue
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Color |
Blue
|
|---|---|
| Conductor Size |
4/0 AN
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Length1 |
3
|
| Material |
Copper
|
| Series |
RM Series
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Sta-Kon
|
| Temperature_Rating |
105
|
| Type |
Insulated
|
| Voltage Rating |
600
|
