Thomas Betts Thomas & Betts RH9731


Description

Industry Description

Nylon Insulated Large Ring Terminal, Length 2.14 Inches, Width .77 Inches, Maximum Insulation .500, Bolt Hole 3/8 Inch, Wire Range 1AN, Color White, Copper, Tin Plated, 50 Pack

Modified Industry Description

INS NYL RING TERM, 1AN, 3/8, CLEAR

AD Description

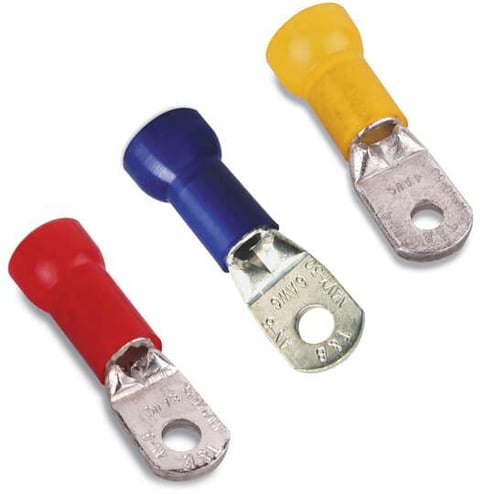

Sta-Kon® RH9731 RH Series Insulated Ring Terminal, 1 AN AWG Conductor, 2.14 in L, Brazed/Overlapped Seam Barrel, Copper, White

Vendor Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Specifications

Color
White
Conductor Size
1 AN
Country of Origin
MX
Finish
Tin Plated
Length1
2.14
Material
Copper
Series
RH Series
Special_Features

  • Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
  • Constructed of electrolytic copper for high conductivity
  • Deep internal serrations
  • EC001052 solderless copper terminals for copper conductors
  • Flex class 105/24
  • Funneled barrel entry
  • Wire range identification on the tongue of each terminal

Standard
UL E9809
Sub_Brand
Sta-Kon
Temperature_Rating
150
Type
Insulated
Voltage Rating
600
