Thomas & Betts Thomas & Betts MCC25M8

Industry Description

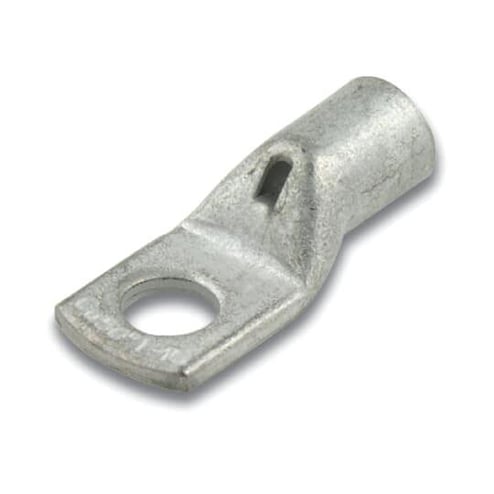

Copper One-Hole Metric Lug, Standard Barrel, Peep Hole, Max 35kV, 25mm2 Wire Size, 8mm Bolt Size, Tin Plated

AD Description

Color-Keyed® MCC25M8 1-Hole Metric Compression Connector Lug With Peep Hole, 25 sq-mm Copper Conductor, M8 Stud, Copper

Vendor Description

Color-Keyed® metric lugs are manufactured from electrolytic copper tube. The dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength, resisting vibration and pull out. Color-Keyed® metric lugs are annealed to guarantee optimum ductility, which is a necessity for compression connectors having to withstand severe deformation arising when compressed or bending of the tongue that may happen during installation. Connectors have to perform adequately with vibration loads and annealing is necessary to avoid material failure between the barrel and the tongue. The presence of an inspection hole facilitates full insertion of the conductor and the barrel length is designed to allow easy and accurate positioning of the dies during the crimping operation. Lugs are electrolytically tin plated to eliminate oxidation of the copper material. Color-Keyed® metric lugs complement our connector family and meet a growing need for customers connector requirements. Details of the appropriate crimping tools and dies are included. Our technical services group is always available to provide any technical advice required. Please contact them if sizes are needed additional to those shown in this catalog.
