Thomas & Betts Thomas & Betts 54170T
Thomas & Betts 54170T
Kirby Risk #: 3084552
UPC: 78621088673, 786210886732, 00786210886732
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

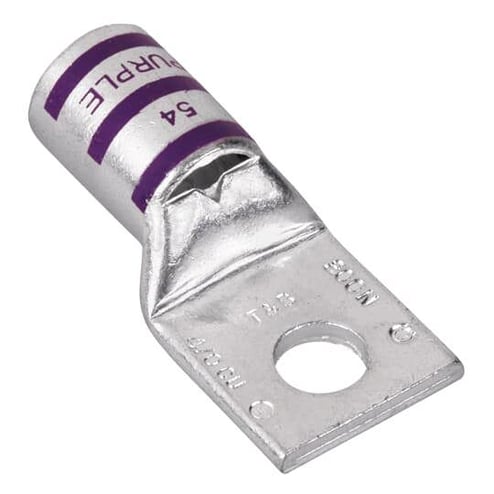

Copper One-Hole Lug, Standard Barrel - Top Stacking, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 1/2 Inch Bolt Size, Tin Plated, Die Code 54, Die Color Code Purple
Modified Industry Description
STD MOD CU AL C
AD Description
Color-Keyed® 54170T 54100 1-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code: 54, 1/2 in Stud, Copper
Vendor Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Color |
Purple
|
|---|---|
| Conductor Type |
Copper
|
| Conductor Size |
4/0
|
| Country of Origin |
MX
|
| Insulation |
None
|
| Length1 |
0.0100
|
| Material |
Copper
|
| Series |
54100
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Color-Keyed
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
