Thomas & Betts Thomas & Betts RC30
Thomas & Betts RC30
Kirby Risk #: 3082382
UPC: 78378605122, 783786051229, 00783786051229, 50783786051224
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

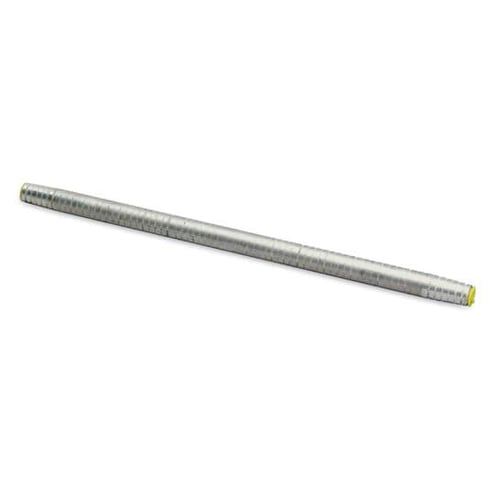

Aluminum 17 inch Full-Tension Distribution Compression Splice for Wire Range: 3/0 ACSR(6/1), 3/0 AAAC(7), 3/0 5005(7), 3/0 AAC(7), Hydraulic Dies: B49EA, 658, 29/32
Modified Industry Description
TENSION SPLICE
Specifications
| Application |
Distribution Compression Connector
|
|---|---|
| Connection |
Compression
|
| Country of Origin |
MX
|
| Insulation |
None
|
| Length1 |
18.1000
|
| Material |
Aluminum
|
| Mounting |
None
|
| Number Of Conductors |
2
|
| Size |
17 inch Length
|
| Special Features |
Center Stop Assures Proper Conductor Positioning, Replaces Two-Piece Splices. External End Taper Provides Conductor Stress Relief, Ease of Stringing and Corona Protection. Internal End Chamfer Allows Easy Conductor Insertion and Prevents Sharp Edge Contact with Conductor. Meets Electrical and Mechanical Requirements of ANSI C199.4. Will Withstand 95 Percent of Conductor Rated Breaking Strength.
|
| Standard |
ANSI C119.4
|
| Sub_Brand |
Blackburn
|
| Type |
Single Sleeve, Full Tension Compression Splice
|
