Thomas & Betts Thomas & Betts PAA109


Description

Industry Description

Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 1/0-8 ASCR 1/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.

Modified Industry Description

PARGRV CLAMP

AD Description

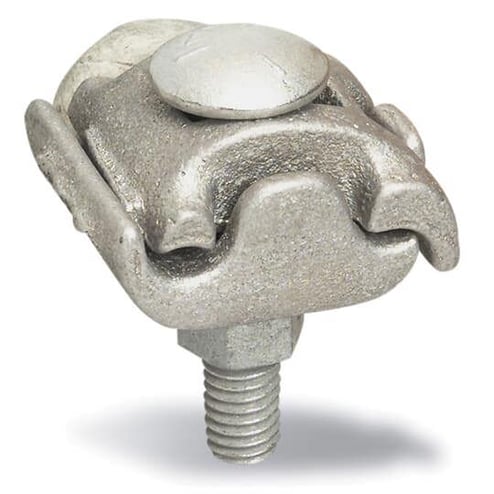

Blackburn® PAA109 2-Conductor Type PAA Dual Rated Parallel Groove Clamp, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 1/0 AWG to 336.4 kcmil, 6 to 1/0 AWG Main/Run, 8 to 1/0 AWG Tap, 3/8 in Bolt, Aluminum

Vendor Description

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.

Specifications

Application
Securing Conductors
Conductor Type
ACSR/Aluminum/Copper/Solid/Stranded
Connection
Bolted
Country of Origin
IN
Dimensions
2 in L x 1-3/4 in W x 2-15/32 in H
Environmental_Conditions
All Seasons / Conditions
Finish
Bare
Insulation
None
Length1
7.2500
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Bolt Head 9/16 inch, Bolt Size 3/8 inch, Height 2-15/32 X Length 2 X Width 1-3/4 inch
Special Features

  • 1/0 AWG to 336.4 kcmil, 6 to 1/0 AWG AR main conductor range ACSR, 1/0 AWG to 400 kcmil stranded, 6 to 1/0 AWG AR main conductor range for aluminum/copper
  • 8 to 1/0 AWG tap conductor range ACSR, 1/0 AWG stranded to 8 AWG solid tap conductor range for aluminum/copper
  • All seasons environmental conditions
  • Dual-rated for use on aluminum, ACSR and copper conductors
  • High strength, heat treated cast aluminum alloy provides secure connections
  • One-bolt clamp
  • Prefilled with oxide-inhibitor
Sub_Brand
Blackburn
Type
2-Conductor Type PAA Dual Rated
Voltage Rating
35
