Thomas & Betts Thomas & Betts CSB-350-2


Description

Industry Description

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 3/8 Inch, Length 2.22 Inches, Width 3.0 Inches, Height 2.50 Inches, Outlets 2, Clear Insulation

AD Description

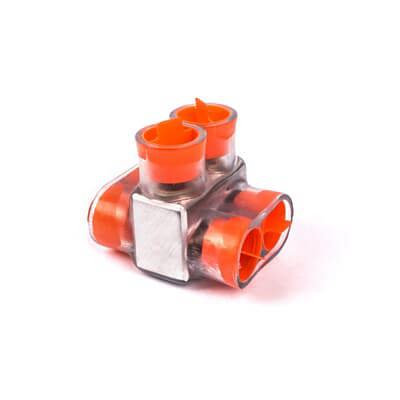

Homac® CSB-350-2 2-Way 2-Outlet Encapsulated Multi-Tap Cable Block, Aluminum/Copper/Stranded Conductor, Aluminum

Vendor Description

Homac® is a complete line-of underground and substation connectors and is recognized as an industry leader for its Flood-Seal® technologies and custom solutions.

Specifications

Color
Clear
Conductor Type
Aluminum/Copper/Stranded
Country of Origin
US
Dimensions
2.22 in L x 3 in W x 2.5 in H
Length1
7.5000
Material
Aluminum
Series
CSB
Special Features

  • Above ground pedestal connectors and covers
  • Clear PVC insulation and safe and time-saving installation with no taping required
  • Dual-rated for use with aluminum and copper conductors
  • Quick and easy-to install in the field
  • Versatile design
  • Wide range of cable sizes and number of outlets available in 1-way configurations
Standard
UL E9809
Temperature_Rating
90 C
Type
2-Way 2-Outlet Encapsulated
Voltage Rating
600
