Thomas & Betts Thomas & Betts CSB-2/0-5


Description

Industry Description

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 2/0 kcmil-14 Str, Hex Size 3/16 Inch, Length 3.80 Inches, Width 1.68 Inches, Height 1.63 Inches, Outlets 5, Clear Insulation

AD Description

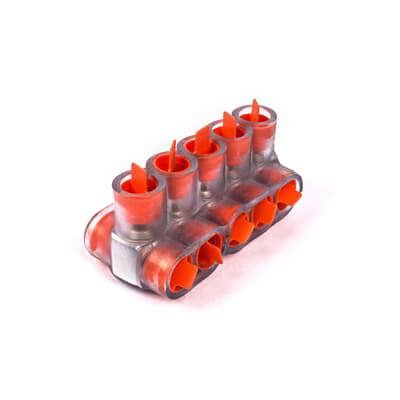

Homac® CSB-2/0-5 2-Way 5-Outlet Encapsulated Multi-Tap Cable Block, Aluminum/Copper/Stranded Conductor, Aluminum

Vendor Description

Homac® is a complete line-of underground and substation connectors and is recognized as an industry leader for its Flood-Seal® technologies and custom solutions.

Specifications

Color
Clear
Conductor Type
Aluminum/Copper/Stranded
Country of Origin
US
Dimensions
3.8 in L x 1.68 in W x 1.63 in H
Length1
8.0000
Material
Aluminum
Series
CSB
Special Features

  • Above ground pedestal connectors and covers
  • Clear PVC insulation and safe and time-saving installation with no taping required
  • Dual-rated for use with aluminum and copper conductors
  • Quick and easy-to install in the field
  • Versatile design
  • Wide range of cable sizes and number of outlets available in 1-way configurations
Standard
UL E9809
Temperature_Rating
90 C
Type
2-Way 5-Outlet Encapsulated
Voltage Rating
600
