Thomas & Betts Thomas & Betts 274J3
Thomas & Betts 274J3
Kirby Risk #: 3080918
UPC: 78378612036, 783786120369, 00783786120369
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
25kV 200 Amp, Loadbreak 3-Point Junction with Stainless Steel Bracket
AD Description

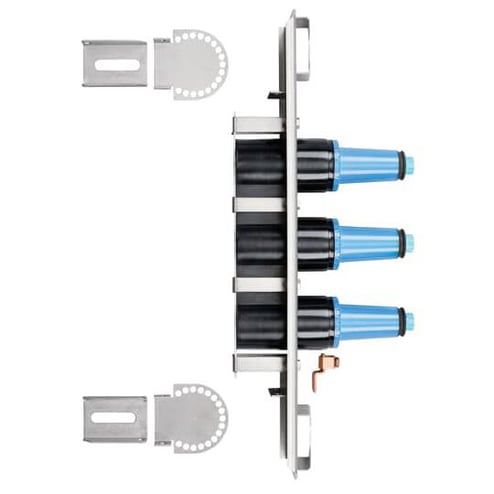

Elastimold® 274J3 3-Point Insulated Loadbreak Junction With Stainless Steel Bracket, 25 kV, 200 A, Panel Mount, EPDM Rubber
Vendor Description
200 A loadbreak connectors and accessories provide a convenient method to connect/disconnect cable and equipment on power distribution systems. Loadbreak elbows include provisions for energized operation using standard hotstick tools, allowing load make/break operation and a visible disconnect. Components can be isolated with insulated caps, plugs and parking bushings. Optional accessories allow system grounding, testing, bypass lightning surge protection and current limiting fusing. Additional connecting points and taps can be provided by use of junctions or feed-thrus.
Specifications
| Amperage Rating |
200
|
|---|---|
| Application |
Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. Suitable for use on 25-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation.
|
| Country of Origin |
US
|
| Dimensions |
9.6 in H x 5 in W
|
| Length1 |
0.0100
|
| Material |
EPDM Rubber
|
| Mounting_Type |
Panel
|
| Size |
23.00 inch (584.2 mm) Mounting Frame Length, 4.00 inch (101.6 mm) Center to Center, 5.00 inch (127.0 mm) width. 9.60 inch (243.8 mm) height
|
| Special Features |
|
| Standard |
ANSI/IEEE 386
|
| Temperature_Rating |
-40 to +65 C
|
| Type |
3-Point Insulated
|
| Voltage Rating |
25
|
