Thomas & Betts Thomas & Betts 2701A4

Name: Thomas & Betts 2701A4
Brand: Thomas & Betts
SKU: 3080902
Price: 285.71 USD
Availability: InStock

Thomas & Betts 2701A4

Kirby Risk #: 3080902

UPC: 78378665287, 783786652877, 00783786652877, 50783786652872

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Thomas & Betts

Description

Industry Description

25kV 200 Amp, Loadbreak Bushing Insert, includes internal torquing feature using 200AT Assembly Tool.

AD Description

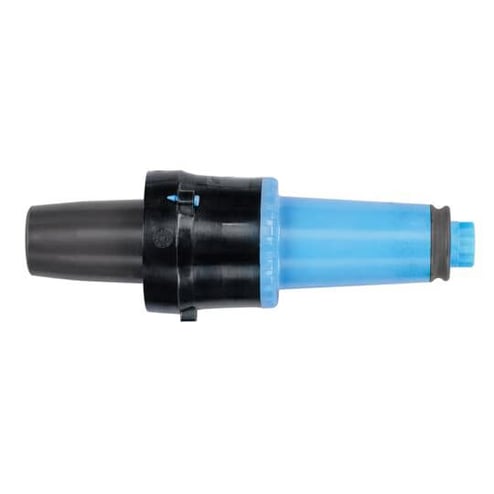

Elastimold® 2701A4 Insulated Loadbreak Bushing Insert, 25 kVAC, 200 A, For Use With Standard ANSI Bushing and Elbow Connections, EPDM Rubber

Amperage Rating	200
Color	Black
Country of Origin	US
Dimensions	2.9 in Dia x 8.93 in L
Insulation	Yes, EPDM Rubber
Length1	19.2500
Material	EPDM Rubber
Special Features	Blue PBT interface shield reduces sticking and provides a seating indicator Includes hex broach for torque installation Includes internal torquing feature using 200AT assembly tool Peroxide-cured insulation and jacket Provision for ground wire connection Vent prevents partial vacuum flashover
Type	Insulated
Voltage Rating	25
