Appleton Appleton ARC1034CDRS


Description

Industry Description

Powertite Grounding Style 2 Connector Body, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Mater

Modified Industry Description

GROUNDING CONNECTOR BODY 100A 600V 4P3W

AD Description

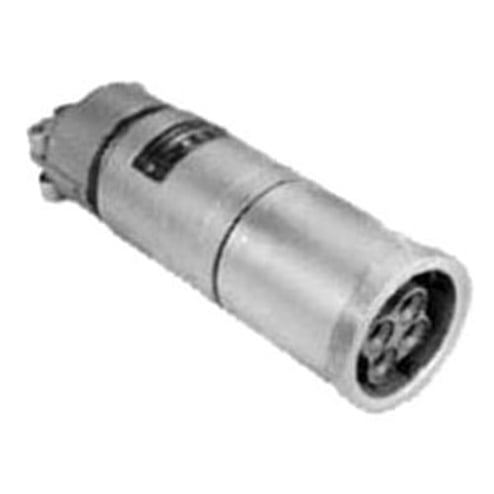

Appleton® Powertite® ARC1034CDRS 3-Phase Grounding Style 2 Pin and Sleeve Connector Body With Reverse Service, 600/250 VAC/VDC, 100 A, 4 Poles, 3 Wires

Vendor Description

Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, "make first, break last" grounding.

Specifications

Amperage Rating
100
Application
For ACP1034CD Clamping Ring Plug
Connection
Pressure Wire Terminal
Conductor Size
4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
Country of Origin
MX
Dimensions
16 in L x 4-1/4 in W
Frequency_Rating
50/400
Length1
11.9000
Material
Copper Free Aluminum
NEMA_Rating
NEMA 3/3R/4/4X
Number_Of_Poles
4
Phase
3
Series
ARC
Special Features

  • 0.391 in dia wire recess
  • Contacts exert constant pressure along entire contact surface and provide electrical continuity
  • Controlled length contacts ensure that ground makes first and breaks last for added safety
  • Designed to supply power to portable or fixed electrical equipment
  • Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
  • Locking screw and slot prevents plug cable collar from "backing off"
  • Natural finish glass filled polyester insulating blocks
  • Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
  • Shell and extra pole grounding style 2
Standard
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Sub_Brand
Appleton
Temperature_Rating
-40 to 225
Type
3-Phase Grounding Style 2
Voltage Rating
600/250
