Siemens Siemens BQD270
Siemens BQD270
Kirby Risk #: 3079090
UPC: 78364327730, 783643277304, 00783643277304
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
BREAKER BQD 2P 70A 480VAC 14KA 10 KAIC
Modified Industry Description
BREAKER BQD 2P 70A 480VAC 14KA
AD Description

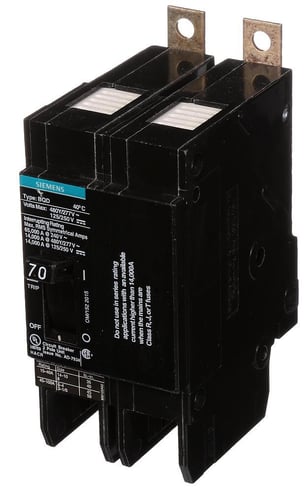

Siemens BQD270 Type BQD Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 70 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Vendor Description
Siemens panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panel board busbar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as switching duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Specifications
| Amperage Rating |
70
|
|---|---|
| Application |
Construction
|
| Color |
Black
|
| Connection |
LOW TAB
|
| Country of Origin |
MX
|
| Dimensions |
4 in L x 2 in W x 3 in H
|
| Frame |
BQD/100A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14
|
| Length1 |
3.6500
|
| Material |
MOLDED CASE CIRCUIT BREAKER
|
| Mounting_Type |
Panel
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40DEGC
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL489CSA-C22.2
|
| Temperature_Rating |
40
|
| Type |
BQD
|
| Voltage Rating |
480/277
|
