Crouse-Hinds Crouse-Hinds AP20468

Name: Crouse-Hinds AP20468
Brand: Crouse-Hinds
SKU: 3076655
Price: 2115.85 USD
Availability: InStock

Crouse-Hinds AP20468

Kirby Risk #: 3076655

UPC: 78227404000, 782274040004, 00782274040004

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Crouse-Hinds

Description

Industry Description

200 AMP 3 WIRE 4 POLE ARKTITE PLUG 1.875- 2.500 2 1/2 .56 CONDUIT SZ

Modified Industry Description

200A 3W4P ARKTE PLG 1.875- 2.500 2

AD Description

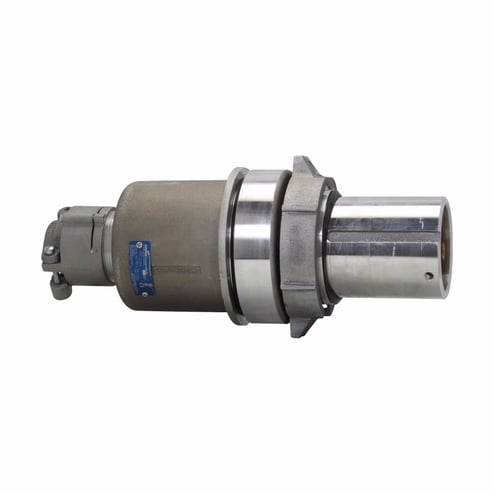

Crouse-Hinds Arktite® AP20468 Heavy Duty Watertight Pin and Sleeve Plug, 600 VAC/250 VDC, 200 A, 4 Poles, 3 Wires, Natural

Amperage Rating	200
Application	Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Conveyors, Lighting Systems
Color	Natural
Connection	Crimp/Solder
Conductor Size	1 To 4/0 AWG (Building), 1 To 3/0 AWG (Extra Flex)
Country of Origin	US
Dimensions	6-3/4 in Dia x 14-3/4 in L
Frequency_Rating	50 to 400
Horsepower	150
Length1	14.7500
Material	Copper Free Aluminum
NEMA_Rating	NEMA 3R/4
Number_Of_Poles	4
Series	AP Series
Size	6-3/4 In Diameter X 14-3/4 In Length
Special Features	0.56 in maximum conductor 1 to 4/0 AWG (building), 1 to 3/0 AWG (extra flex) wire 1-7/8 to 2-1/2 in Dia cable Grounding contact wire terminators will accommodate ground wire of same size as phase wire Grounding style 2 Large wire wells are available for extra flexible wire Larger wire well size connectors will interchange with connectors of other wire well size of same amperage and contact configuration Mechanical lug connectors will interchange with crimp/solder connectors of the same amperage and contact configuration Self closing spring doors on receptacles and cord connectors provide environmental sealing Spring band contact design provides multiple points of electrical contact, improves electrical reliability and significantly reduces effort required for insertion and withdrawal Threaded nuts provide positive plug retention Two piece plug and cord connector design provide easy installation
Standard	UL 514, UL 1010, UL 1682, CSA C22.2
Sub_Brand	Eaton Crouse-Hinds
Type	Heavy Duty Watertight
Voltage Rating	600 VAC/250 VDC
