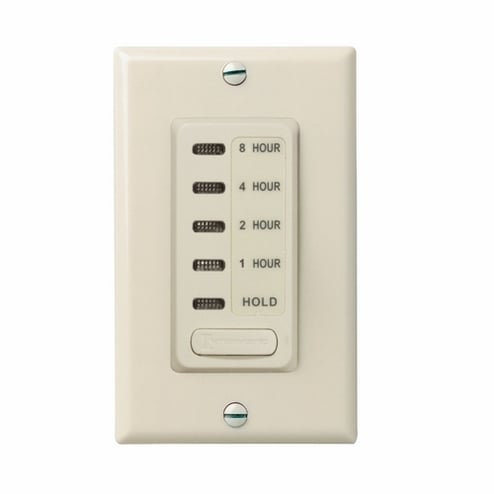

Intermatic Intermatic EI220LA


Description

Industry Description

The Electronic Auto-Off Timer 1/2/4/8 Hour With HOLD Light Almond The EI200 Series Decorator Electronic Auto Shut-OFF Timers provide silent operation in time ranges from 5 minutes to 12 hours.

Modified Industry Description

ELECTRONIC AUTO-OFF TIMER 1/2/4/8

AD Description

Intermatic® EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 1/2/4/8 hr Time Setting, 120 VAC, 1/2 hp, 1NO SPST Contact Form, 1 Pole

Specifications

Action
1 x SPST
Amperage Rating
15
Application
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Class
EI
Country of Origin
CN
Dimensions
2.79 in H x 1.75 in W x 1.44 in D
Horsepower
1/2
Mounting
Wall Mount
Mounting_Type
Wall
Number_Of_Poles
1
Operating_Temperature
+32 to +122 DEG F, 0 to +50 DEG C
Series
EI200
Size
2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Special Features

  • 1800 W maximum
  • 500 VA electronic ballast
  • 60 Hz frequency
  • 8.3 A at 120 VAC (tungsten-incandescent), 8 A at 120 VAC (ballast magnetic), 15 A at 120 VAC (resistive heater)
  • Auto shut-off in-wall
  • For use with decorator style wall plate (not included)
  • Incandescent-fluorescent CFL/LED compatible
  • Light almond color
  • Replaces 1-pole switches in a variety of applications
  • Requires neutral wire
  • Silent operation in time ranges from 5 min to 12 hr
  • Single button time selection, with some models having a hold mode, for continuous on operation
  • Timer contacts shall break current at the end of timed cycle
  • With preset times
Standard
cULus Listed, HVACR
Sub_Brand
Intermatic
Temperature_Rating
32 to 122
Type
Auto Shut-Off In-Wall
Voltage Rating
120
Wattage
1,800
