Lithonia Lighting Lithonia Lighting L3RLED T24 R6


Description

Industry Description

4 IN LED remodel housing, Title 24, SKU - 221TJN

Modified Industry Description

RESI DL NO MASK, RESIDENTIAL

AD Description

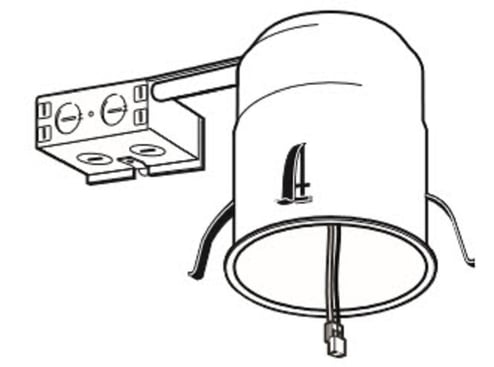

Lithonia Lighting® L3RLED T24 R6 Round Downlight Housing, LED Lamp, 120 VAC, 4 in Ceiling Opening, Aluminum Housing

Vendor Description

Airtight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90 deg C. Factory installed captive bar hangers that span up to 24 OC and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position. Suitable for ceilings up to 1-1/2 in THK.

Specifications

Application
Conference Room, Hotel, Kitchen, Living Area, Open Office, Private Office, Residential
Color
Gray
Country of Origin
MX
Finish
Unfinished
Lamp_Type
LED
Material
Aluminum
Mounting
Recessed
Mounting_Type
Recessed/Wood Joist/T-Bar
Series
L3
Special Features

  • (4) 1/2 in and (2) 3/4 in knockouts with slots for pryout, rated for through branch wiring
  • 100 CRI, 1100 lumens and 3000 K color temperature
  • Airtight housing suitable for airtight installations
  • Airtight standard and tested to meet current energy codes
  • Aluminum housing with galvanized steel pan
  • Direct (95 to 100% down) light distribution
  • Durable medium base porcelain socket with nickel plated copper alloy screw shell and contact
  • Expandable bar hangers allow for off center mounting in wood joist or T-bar ceilings
  • Galvanized bar hangers span up to 24 in OC and feature stepped shank nail and positioning guide with integral T-bar locks
  • Galvanized steel junction box (4) built-in Romex® clamps
  • Removable J-box doors for easy access
  • Round shape
  • Socket attaches to reflector to ensure proper and consistent lamp position
  • Socket clips to top of housing to prevent paint overspray in socket screw shell
  • Thermal protection provided against improper lamp usage
  • Two locking screws hold fixture in position
  • Vertical adjustment of housing allows for flush mounting with ceiling face
Standard
cUL
Type
Round
Voltage Rating
120
Wattage
Not Applicable
