TPI TPI UHP24CJR
TPI UHP24CJR
Kirby Risk #: 3016418
UPC: 68633487458, 686334874588, 00686334874588
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: TPI
Description
Industry Description
High Performance Unassembled Maximum Duty Circulator, 1/3 HP, Size- 27 IN, Blade Size- 24 IN, Flow Rate- 5200 (Low), 7000 (High) CFM, 2.8 AMP, 2 Speed - 800 (Low), 1100 (High) RPM, 120 V
Modified Industry Description
24IN 13 HP CEILING MOUNT SUPER DUTY
AD Description

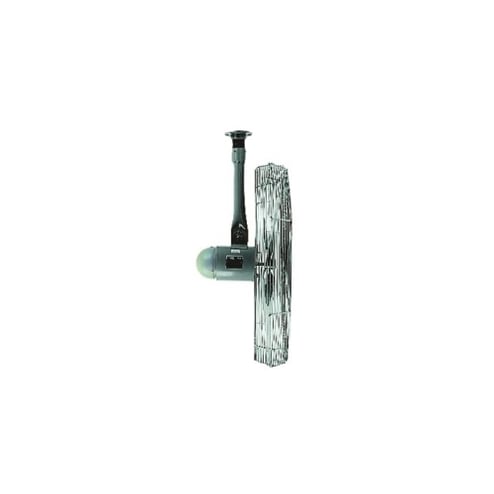

TPI UHP24CJR 1-Phase High Performance Maximum Duty Unassembled Air Circulator, 24 in Blade, 7000 cfm High, 5200 cfm Low Flow Rate, 120 VAC, 2.8 A
Specifications
| Amperage Rating |
2.8
|
|---|---|
| Application |
Indoor-Industrial
|
| Blade_Material |
Aluminum
|
| Blade_Size |
24
|
| Brand Name |
TPI
|
| Country of Origin |
US
|
| Drive_Type |
Motor
|
| Flow_Rate |
7000 cfm High, 5200 cfm Low
|
| Horsepower |
0.3
|
| Housing_Material |
Steel
|
| Maximum_Depth |
14.5 IN
|
| Model |
UHP24CJR
|
| Motor_Type |
Split Capacitor
|
| Mounting |
Ceiling
|
| Number_Of_Blades |
3
|
| Number_Of_Speeds |
2
|
| Phase |
1
|
| Shaft_Diameter |
1/2 IN
|
| Size |
27 IN
|
| Special Features |
|
| Speed |
1100 rpm High, 800 rpm Low
|
| Standard |
cETLus Listed;OSHA
|
| Style |
Paddle Blade
|
| Sub_Brand |
TPI
|
| Type |
1-Phase High Performance Maximum Duty Unassembled
|
| Voltage Rating |
120
|
