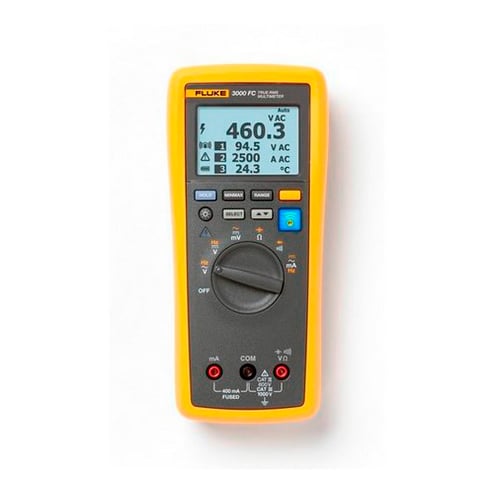

Fluke FLUKE FLK-3000 FC


Description

Industry Description

Start building tomorrow’s test tool system today with the Fluke 3000 FC Digital Multimeter. The new Fluke Connect system of test tools communicates with the new Fluke Connect mobile application on your Android™ or iOS smart device, allowing you to share live measurements, monitor readings from safe distances, and get your job done easier than ever before. The wireless digital multimeter functions as the mobile hub, displaying readings from up to three module tools simultaneously from up to 20 m away. The Fluke Connect modules also give you the flexibility to build your wireless test tool system how you want when you want.

Modified Industry Description

FC WIRELESS DIGITAL MULTIMETER

Specifications

Amperage Rating
400
Application
True-RMS Digital Multimeter for troubleshooting and repair of electrical and electronic systems
Country of Origin
UKN
Dimensions
1.87 () x 3.68 () x 8.14 ()
Display
LCD
Enclosure
Hard Plastic
Frequency_Rating
99.99k
Length1
2.9000
Special Features

  • +/-12 counts for changes >350 mS in duration DC functions
  • +/-40 counts for changes > 900 ms in duration AC functions
  • 1.0 % + 3 accuracy for 45 to 500 Hz, 2% + 3 accuracy for 500 to 1 kHz at 600 mV/6/60/600/1000 VAC, 0.09% + 2 accuracy at 600 mV/6/60/600 VDC, 0.15% + 2 accuracy at 1000 VDC
  • 1.87 in H x 3.68 in W
  • 44/100 A, 1000 V fast overload protection fuse
  • 50 MOhm resistance
  • 600 mA for 2 m max, 10 m rest min overload
  • 99.99 Hz frequency
  • 99.99 Hz/0.01 Hz 999.9 Hz/0.1 Hz 9.999 kHz/0.001 kHz 99.99 kHz/0.01 kHz range/resolution
  • Accuracy: 1 frequency is specified up to 99.99 kHz in volts and up to 10 kHz in a
  • Capture readings at different intervals, with user set recording intervals from one second to one hour
  • Communicate with your iOS (4S and later) and Android™ (4.3 and up) devices with the new Fluke® connect mobile application
  • Data is saved to a PC in .csv format (comma separated variable) file format for easy viewing at your convenience
  • Hard plastic enclosure
  • Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules
  • Let your team see what you see in an instant with ShareLive™ video call
  • Save money and time by taking multiple measurements simultaneously
  • View results on your computer with the PC adapter
  • Wireless technology allows connectivity between your phone, PC and all Fluke® connect enabled test tools
  • Work with fewer interruptions by recording multiple sessions before downloading
Standard
Electromagnetic compatibility EMI, RFI, EMC, RF---EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489; V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249; FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE; Safety compliance---ANSI/ISA 61010-1 / (82.02.01): 3rd edition; CAN/CSA-C22.2 No 61010-1-12: 3rd edition; UL 61010-1: 3rd edition; IEC/EN 61010-1:2010; Certifications---CSA, FCC, CE; Ingress Protection (IP) rating IP54; Pollution Degree 2
Sub_Brand
Fluke
Temperature_Rating
When used in conjunction with Fluke t3000 FC Wireless K-Type Temperature Module = K-type: -200 °C to 1372 °C
Type
Digital
Voltage Rating
600 mV 6 V, 60 V, 600 V, 1000V
