Greenlee Greenlee UT10-2S


Description

Industry Description

2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop. The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch. Use for cable pulls requiring high as well as low pulling loads. The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT. The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB. 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB. Easy control features for increased productivity: On-board force gauge provides visual communication of pulling force and speed changes. Quick speed change from high speed to low-speed by simply double tapping foot pedal. Removable foot pedal for convenience.

Modified Industry Description

PULLER ASSEMBLY (UT10)

AD Description

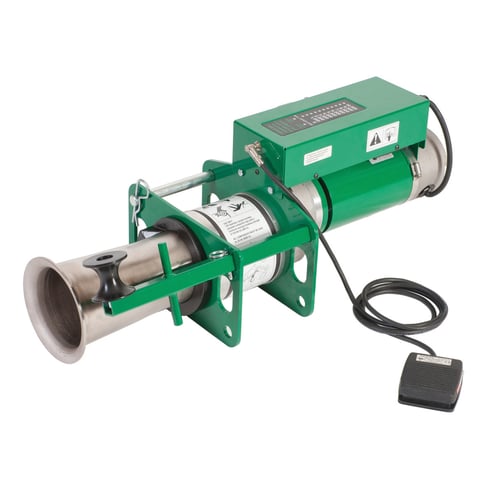

Greenlee® Ultra Tugger® UT10-2S Double Braided Heavy Duty Cable Puller Assembly, 6500 to 10000 lb Pulling, 7/8 in Dia Cable, 16 fpm at No Load Pulling, Polyester Composite, Tool Only

Specifications

Amperage Rating
20
Country of Origin
US
Dimensions
11-1/2 in L x 26 in W x 6-3/4 in H
Length1
32.0000
Power_Rating
1-1/2
Series
UT10
Special Features

  • 14 ft/min at 2000 lb, 12 ft/min at 4000 lb, 7 ft/min at 6000 lb and 6 ft/min at 8000 lb pulling speed
  • 2 min setup, 6 grips cover the cable size from 1 AWG through 1000 MCM, 5 different harness lengths to prevent overlap during cable pull, use Greenlee® EK12IDL or HK12ID to crimp any size without changing dies
  • 2-speed motor that delivers the fastest pulling time for all pulling needs over the widest 10000 lb range
  • 2-speed ultra Tugger® (UT10-2S) is a one-stop-shop - the only 2-speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch
  • 6500 to 8000 lb (28.9 to 35.6 KN) 15 min on/15 min OFF, 8000 to 10000 lb (35.6 to 44.5 KN) momentary
  • Double braided polyester composite rope
  • Easy control features for increased productivity, on-board force gauge provides visual communication of pulling force and speed changes
  • Quick speed change from high speed to low speed by simply double tapping foot pedal
  • Removable foot pedal for convenience
  • Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb
  • The no load high speed is 16 ft/min and is best suited for loads up to 4000 lb where the speed will be 12 ft/min
  • The no load low speed is 9 ft/m and can be used on loads up to 8000 lb where the speed will be 6 ft/m or a momentary peak capacity of 10000 lb
  • Use for cable pulls requiring high as well as low pulling loads
Sub_Brand
Greenlee
Type
Electrical Heavy Duty
Voltage Rating
115
