Greenlee Greenlee UT10-22


Description

Industry Description

2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB. Easy control features for increased productivity. On-board force gauge provides visual communication of pulling force and speed changes. Quick speed change from high-speed to low-speed by simply double tapping foot pedal. Removable foot pedal for convenience.

Modified Industry Description

PULLER (UT10-22)

AD Description

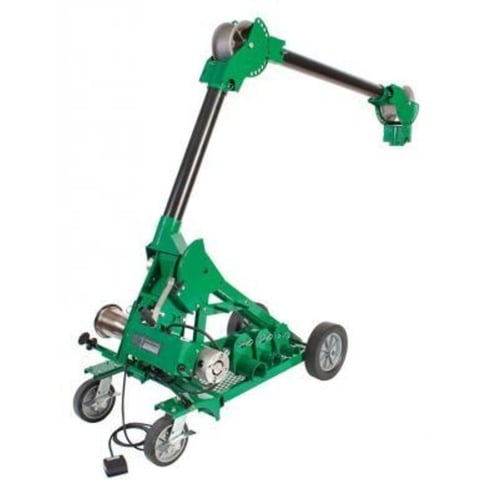

Greenlee® Ultra Tugger® UT10-22 Heavy Duty Cable Puller, 6500 to 10000 lb Pulling, 7/8 in Dia Cable, 16 fpm at No Load Pulling, Tool Only

Specifications

Amperage Rating
20
Application
10,000 pound cable puller with 2 speed motor and removable foot pedal
Country of Origin
US
Dimensions
11.5 in L x 26 in W x 10 in H
Length1
32.0000
Power_Rating
1-1/2
Series
UT10
Special Features

  • 2 speed motor that delivers the fastest pulling time for all pulling needs over the widest 10000 lb range
  • Double braided polyester composite rope
  • Easy control features for increased productivity
  • On-board force gauge provides visual communication of pulling force and speed changes
  • Pulling speed : 14 ft/min at 2000 lb, 12 ft/min at 4000 lb, 7 ft/min at 6000 lb and 6 ft/min at 8000 lb
  • Quick speed change from high speed to low speed by simply double tapping foot pedal
  • Removable foot pedal for convenience
  • Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb
Sub_Brand
Greenlee
Type
Heavy Duty
Voltage Rating
220
