Panduit Pan-Net Panduit Pan-Net UTP28SP3


Description

Industry Description

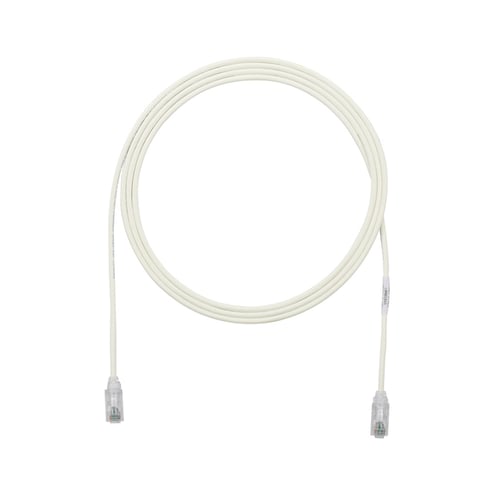

Category 6 Performance, 28 AWG UTP patch cord with TX6™ Modular Plugs on each end. Off White, 3 ft.

Modified Industry Description

3 FT CAT 6 OFF WHITE PATCH CORD

AD Description

Panduit® PanNet® TX6-28™ UTP28SP3 U/UTP Class EA Small Diameter Patch Cord, Cat 6, 28 AWG Stranded Tin Plated Copper Conductor, RJ45 Modular Plug Connector, 3 ft L Cord

Vendor Description

Cat 6/class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.

Specifications

Application
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Digital video and broadband/baseband analog video(4) Voice/data systems(5) Voice over Internet Protocol (VoIP)
Boot_Type
Modular Plug
Brand Name
Panduit Pan-Net
Color
Off-White
Conductor Material
Copper
Conductor Size
28
Cord_Length
3
Country of Origin
MUL
Jacket_Material
Polyvinyl Chloride
Material
Copper
Number Of Conductors
RJ45 8(8)
Package_Quantity
1
Plug_Type
Modular Plug
Special Features

  • 0.15 in OD
  • 100% performance tested for wire map, NEXT and return loss
  • 28 AWG UTP patch cord with TX6™ modular plugs on each end
  • Centered de-embedded plug
  • Identification label provides identification of performance level, length and quality control number for traceability
  • Integral pair manager optimizes performance and consistency by reducing untwist at plug
  • Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
  • Robust construction plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
  • Smaller diameter, flexible cable design
Standard
PoE,PoE+
Sub_Brand
Panduit
Temperature_Rating
14 to 167
Type
Class E Small Diameter
Width_2
7.6000
Width_3
7.6000
