Panduit Pan-Net Panduit Pan-Net UTP28SP1MBU-Q
Panduit Pan-Net UTP28SP1MBU-Q
Kirby Risk #: 2979432
UPC: 07498327926, 074983279265, 00074983279265
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

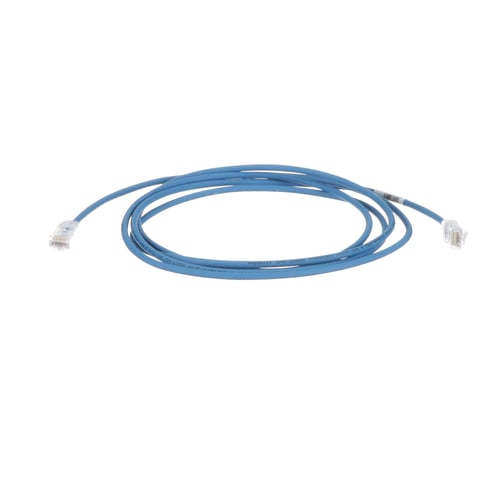

Category 6 Performance, 28 AWG UTP patch cord with TX6™ Modular Plugs on each end.
AD Description
Panduit® TX6-28™ UTP28SP1MBU-Q U/UTP Small Diameter Patch Cord, Cat 6 Category, 28 AWG Stranded Tin Plated Copper Conductor, RJ45 Connector, 1 m L Cord
Vendor Description
Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Specifications
| Application |
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video(4) Voice/data systems (5)Voice over Internet Protocol (VoIP)
|
|---|---|
| Color |
Black
|
| Conductor Type |
Stranded Tin Plated Copper
|
| Conductor Size |
28
|
| Construction |
U/UTP
|
| Country of Origin |
MUL
|
| Length1 |
9.7000
|
| Outside_Diameter |
0.15
|
| Series |
UTP28SP
|
| Special Features |
|
| Standard |
Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4
|
| Sub_Brand |
Pan-Net?®
|
| Temperature_Rating |
14 to 140
|
| Type |
U/UTP Small Diameter
|
